Name: Noyafa NF-716ADHS All-in-One IPC CCTV-Kamera-Tester
Brand: My Store
SKU: NF-IPC716
Price: 263.68 USD
Availability: InStock

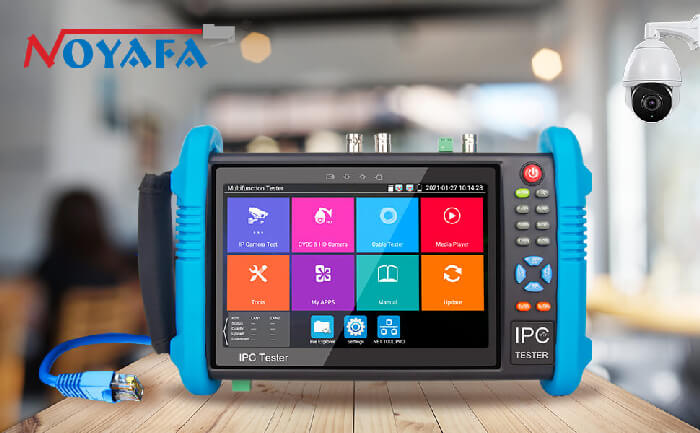

Noyafa NF-716ADHS All-in-One IPC CCTV-Kamera-Tester

NF-716ADHS Security Camera Tester Back Display

NF-716ADHS Security Camera Tester Ports and Cords

$270.00 USD $263.68 USD

zzgl. Versandkosten

Models

NF-IPC716

NF-IPC716ADHS

NF-IPC716 MOVTADHS Pro

Compare NF-IPC716ADHS and NF-IPC716

30-Tage-Geld-zurück-Garantie

Auf Lager, schnell kostenloser Versand

Menge

Buy more and save more

BUY OVER $300 for 8% OFF: Copy code BF300TEN
BUY OVER $600 for 11% OFF: Copy code BF600ELV
BUY OVER $1,000 for 12% OFF: Copy code BF1KTEW

Merkmale und Vorteile

7-Zoll-Retina-Touchscreen, 1920*1200 Auflösung.
8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI*.
H.265/H.264, 4K -Videoanzeige über Mainstream.
Dahua, Hikvision, Achse usw. Onvif -Kamera -Test.
Integriertes WLAN, erstellen Sie WiFi-Hotspot.
HDMI -Eingabe & Ausgabe, Unterstützung 1080p.
DC12V 3A, DC48V POE -Ausgabe, maximaler Strom 25,5W.
Rapid Onvif, automatisches Video anzeigen und einen Testbericht erstellen.
UTP -Kabel -Tester/RJ45 -Kabel -TDR -Test, Kabelqualitätstest.
Testerspiel: Tester, Mobiltelefon und PC -Anzeige gleichzeitig.
Zertifizierung. Pässt ROHS-, FCC- und CE -Compliance -Tests, und Noyafa ist nach dem ISO 9001 -Standard zertifiziert.
100% erschwinglich. Es wird in China hergestellt und ist viel billiger als Konkurrenzprodukte mit ähnlicher Qualität.

Modell: NF-716
IP -Kamera -Test (4K/H.265/H.264): Ja
IP & CVBS -Test: Ja
NTSC/PAL: Auto anpassen
PTZ Control, RS485 Control, Baud 600-115200bit / s
UTP -Kabeltest: Ja
RJ45 -Kabel -TDR -Test: Ja
Netzwerktest: Ja
Datenmonitor: Ja
Poe -Test: Ja
Testerplay: Ja
CVBS -Loop -Test: Ja
Koaxial HD -Test: Ja
HDMI -Eingabe: Ja
Anzeige: 7-Zoll-Touchscreen
Bild zoomen: Ja
Analoges Video aus: Ja
W-lan: Ja
Audio -Test: Ja
Leistung: 48 V Poe Output, max Power 24w
DC12V -Leistung: DC12V 3A -Ausgangsleistung
Externe Stromversorgung : DC 12V 2a
Ladezeit: 5-6 Stunden
Arbeitszeit: 16 Stunden
Stromversorgung: Eingebaute 7,6-V-Lithium-Polymerbatterie, 7800mah

Noyafa NF-716ADHS Anweisung

[{"id":49950351753491,"title":"NF-IPC716","option1":"NF-IPC716","option2":null,"option3":null,"sku":"NF-IPC716","requires_shipping":true,"taxable":false,"featured_image":{"id":48942888386835,"product_id":8943518515475,"position":1,"created_at":"2025-03-12T20:20:52-07:00","updated_at":"2025-03-12T20:25:31-07:00","alt":null,"width":1000,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NF-716-front.jpg?v=1741836331","variant_ids":[49950351753491]},"available":true,"name":"Noyafa NF-716ADHS All-in-One IPC CCTV-Kamera-Tester - NF-IPC716","public_title":"NF-IPC716","options":["NF-IPC716"],"price":26368,"weight":800,"compare_at_price":27000,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":40818287902995,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NF-716-front.jpg?v=1741836331"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":49950351720723,"title":"NF-IPC716ADHS","option1":"NF-IPC716ADHS","option2":null,"option3":null,"sku":"NF-IPC716ADHS","requires_shipping":true,"taxable":false,"featured_image":{"id":44749006602515,"product_id":8943518515475,"position":2,"created_at":"2024-01-22T23:25:55-08:00","updated_at":"2025-03-12T20:21:00-07:00","alt":"NF-716ADHS IPC Camera Tester Functions","width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NF-IPC716-IP-camera-tester-functions.jpg?v=1741836060","variant_ids":[49950351720723]},"available":true,"name":"Noyafa NF-716ADHS All-in-One IPC CCTV-Kamera-Tester - NF-IPC716ADHS","public_title":"NF-IPC716ADHS","options":["NF-IPC716ADHS"],"price":31989,"weight":800,"compare_at_price":35000,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"NF-716ADHS IPC Camera Tester Functions","id":37164360433939,"position":2,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NF-IPC716-IP-camera-tester-functions.jpg?v=1741836060"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":50675291062547,"title":"NF-IPC716 MOVTADHS Pro","option1":"NF-IPC716 MOVTADHS Pro","option2":null,"option3":null,"sku":"NF-IPC716 MOVTADHS Pro","requires_shipping":true,"taxable":false,"featured_image":{"id":45135856697619,"product_id":8943518515475,"position":3,"created_at":"2024-02-22T18:58:09-08:00","updated_at":"2025-03-12T20:39:55-07:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NOYAFA-IPC716-MOVTADHS-PLUS-cctv-tester-display.jpg?v=1741837195","variant_ids":[50675291062547]},"available":true,"name":"Noyafa NF-716ADHS All-in-One IPC CCTV-Kamera-Tester - NF-IPC716 MOVTADHS Pro","public_title":"NF-IPC716 MOVTADHS Pro","options":["NF-IPC716 MOVTADHS Pro"],"price":53000,"weight":800,"compare_at_price":60000,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":37555989217555,"position":3,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/NOYAFA-IPC716-MOVTADHS-PLUS-cctv-tester-display.jpg?v=1741837195"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Beeindruckend

Großes Bild mit Textfeld

Noyafa NF716ADHS Unboxing

NF-716ADHS All-in-One CCTV-Tester

Der 7 -Zoll -Retina -Touchscreen -IP -Kameratester ist für die Wartung und Installation von IP -Analogon, HD -Koaxialkameras sowie anderen Sicherheitsausgleichsdaten ausgelegt.

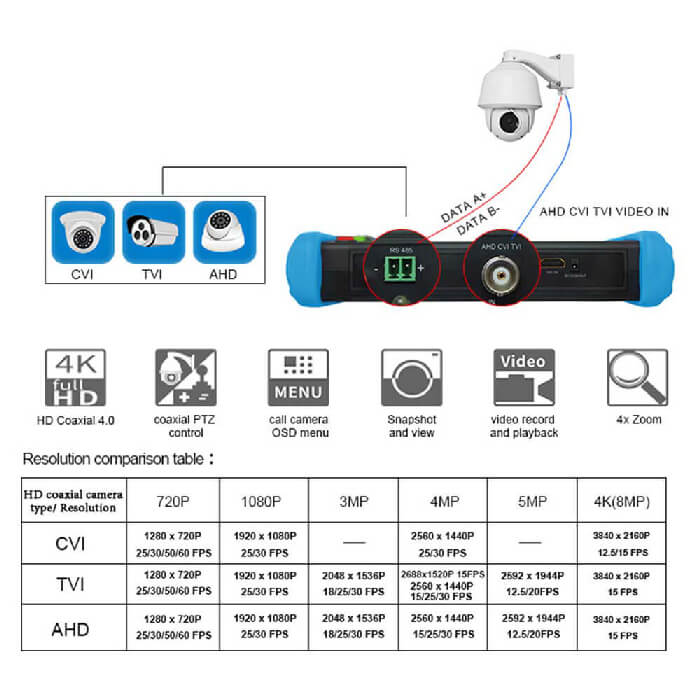

Test über Koaxialkabel

Snapshot, Videoaufzeichnung und Wiedergabe, Zoom, OSD -Menüsteuerung des Kamera über Koaxialkabel.

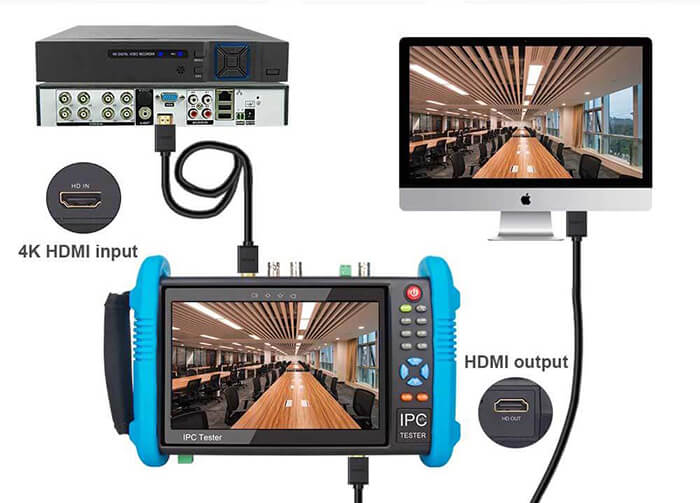

4K HDMI -Eingabe

HDMI -Eingang & Ausgabe, Unterstützung 1080p, 4K

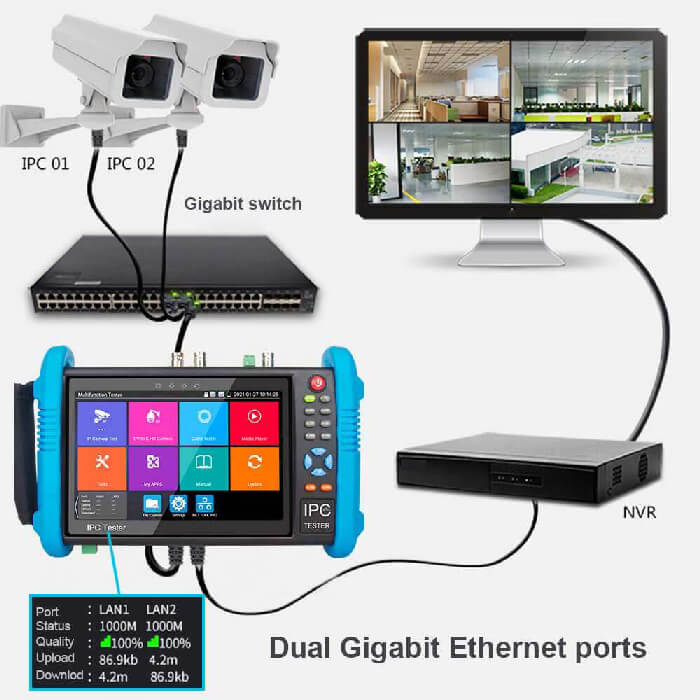

Dual Gigabit Ethernet -Ports

UTP -Kabel -Tester/RJ45 -Kabel -TDR -Test, Kabelqualitätstest.

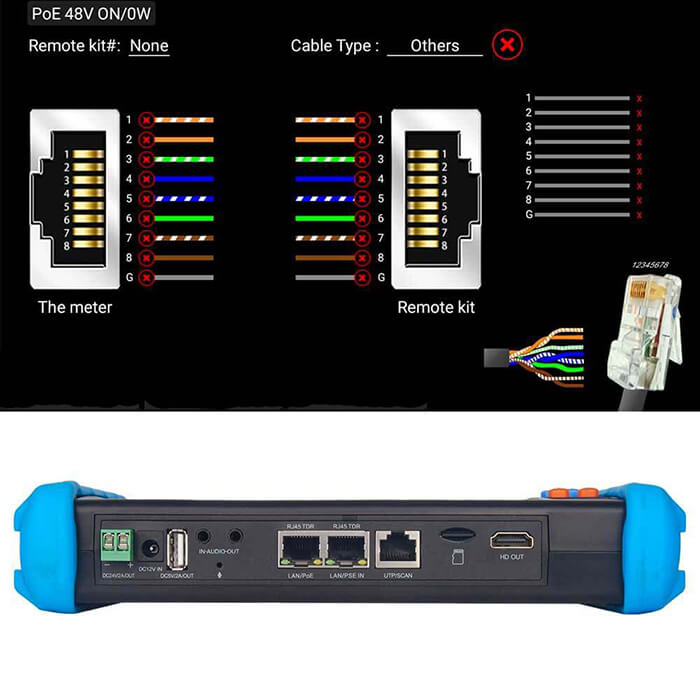

RJ45 -Kabeldiagramm

Diagramm der Kabelsequenz. Schaltplan. Berichte erstellen.

Compare NF-IPC716ADHS and NF-IPC716

NF-IPC716ADHS

7'' 1280*800 Full viewing capacitive touch screen

AHD 8MP ✔️
CVI 8MP ✔️
TVI 8MP ✔️
EX-SDI 8MP ✔️

Network Module:
Dual 1000M Port ✔️
10M/100M/1000M Network Port ✔️
150M WiFi Speed ✔️
2.4G ✔️
WiFi Hot Spot ✔️
WiFi Analyzer ✔️

IP Camera Test:
4K ✔️
H.265 Decode ✔️
IPC one click test ✔️
Smart IPC ✔️
32 Channel Preview ✔️
Activate Hikvision ✔️
ONVIF Testing Report ✔️
Cross-segment Testing ✔️
ONVIF Audio Test ✔️
Wide Dynamic Test ✔️
Change Channel Name ✔️
Face ID ✔️

Network Testing:
Channel Monitor ✔️
Advanced Channel Monitor ✔️
Network Tools ✔️
PING ✔️
IP Scan ✔️
IP Conflict Test ✔️
Mac Address Scan ✔️
Band Test ✔️
Port Flash ✔️
DHCP ✔️
Router Trace ✔️
Link Detection ✔️
PPPOE ✔️
Fast IP Detection ✔️
Focal Length Calculator ✔️
Network Calculator ✔️
Virtual IPC ✔️
Self Contract ✔️
Self Contract Audio Test ✔️
RTSP Player ✔️
Network Status ✔️

Focus Information and Lens Simulation:
Focus Inf ✔️
Video Transfer Quality Test ✔️
Picture Quality Test ✔️
Lens Simulation ✔️

Analog Camera Test:
PAL/NTSC Video Signal Test ✔️
Analog Video Test ✔️
Cloud Platform RS485 ✔️
Video Screenshot, Video Playback ✔️
Color Image Generator ✔️
BNC Loop Test ✔️

Network Testing:
Sequence ✔️
Wiremap ✔️
TDR Testing ✔️
Cable Quality Test ✔️
1000M Communication Quality Test ✔️

HDMI Testing:
VGA Input ❌
HDMI Input 1080P ✔️
HDMI Input 4K30 ✔️
HDMI Output 1080P ✔️
HDMI Output 4K30/4K60 ❌

Power Supply Testing:
PoE 48V 30W ✔️
PoE, PSE Voltage Measurement ✔️
DC 12V 3A Output ✔️
DC 12V Input Voltage and Watt Measurement ✔️
12V Load Testing ✔️
24V/2A Output ✔️

USB:

USB Read ✔️
USB 5V Output ✔️

Audio Testing:
Audio Input, Record ✔️
Audio Output ✔️

Other Functions:
Backlight ✔️
Micro Phone ✔️
LED Torch ✔️

Buy Now
