$118.89 USD $94.98 USD

zzgl. Versandkosten

type

NF-8508

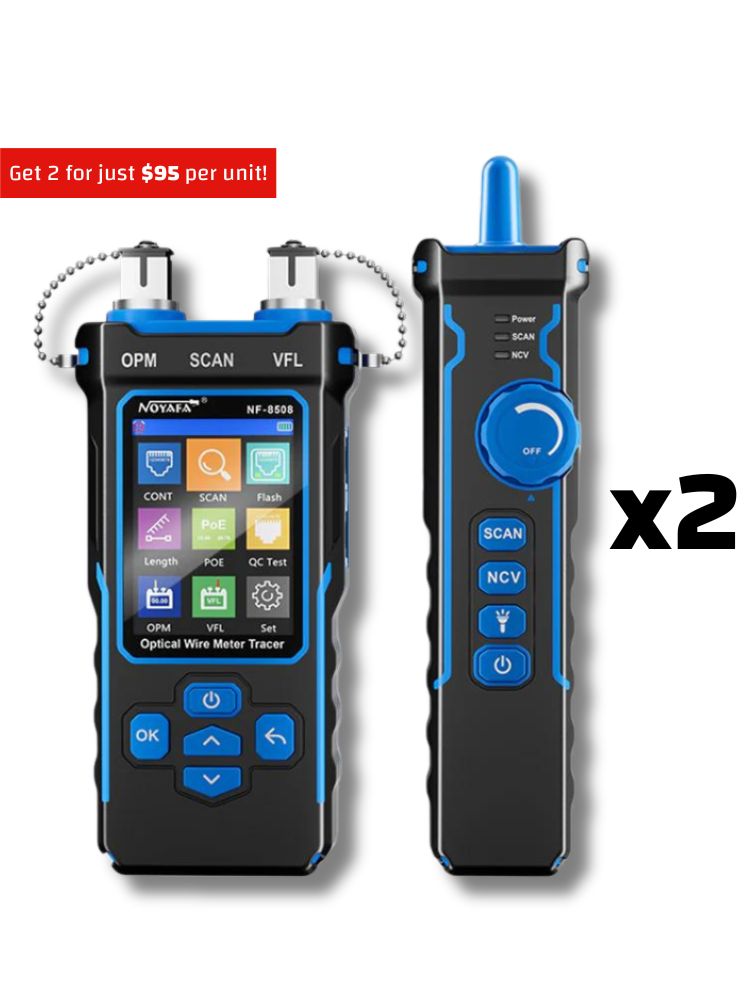

NF-8508 *2

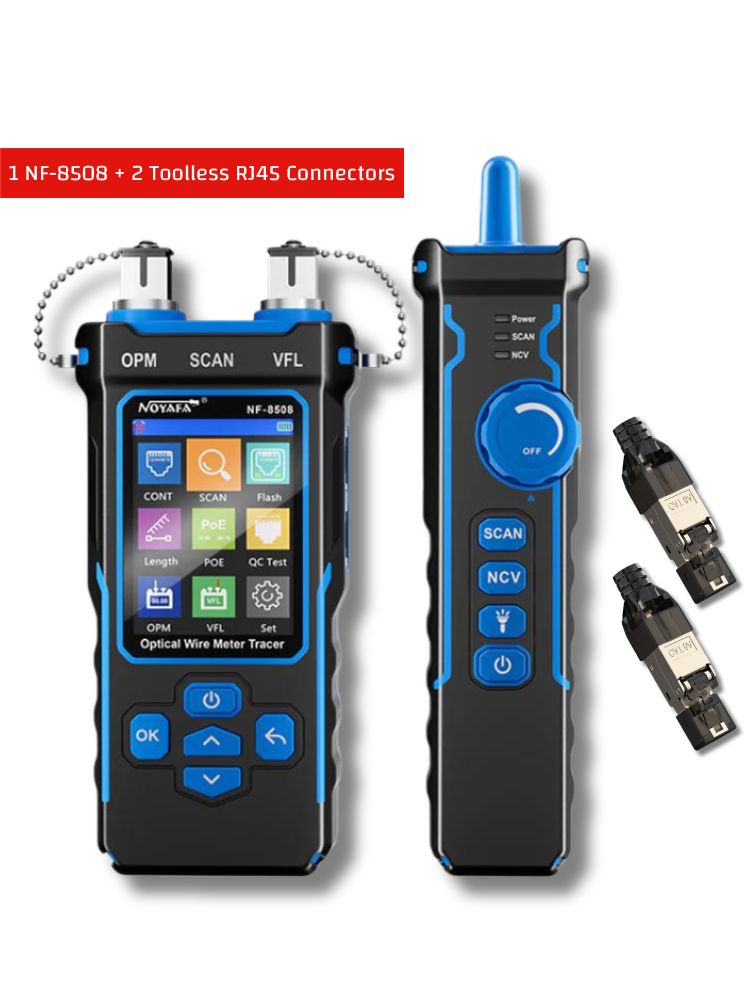

NF-8508 +Toolless RJ45 Connector *2

Toolless RJ45 Connector *10

NF-8506

NF-981 OTDR Tester

Compare the NF-8508 vs NF-8506 vs NF-981

Beware of low-priced refurbished devices. Buy official.

30 Tage Geld-zurück-Garantie

Auf Lager, schnell kostenloser Versand

Menge

Buy more and save more

BUY OVER $300 USD for 8% OFF: Copy code BF300TEN
BUY OVER $600 USD for 10% OFF: Copy code BF600ELV
BUY OVER $1,000 USD for 12% OFF: Copy code BF1KTEW

Merkmale und Vorteile:

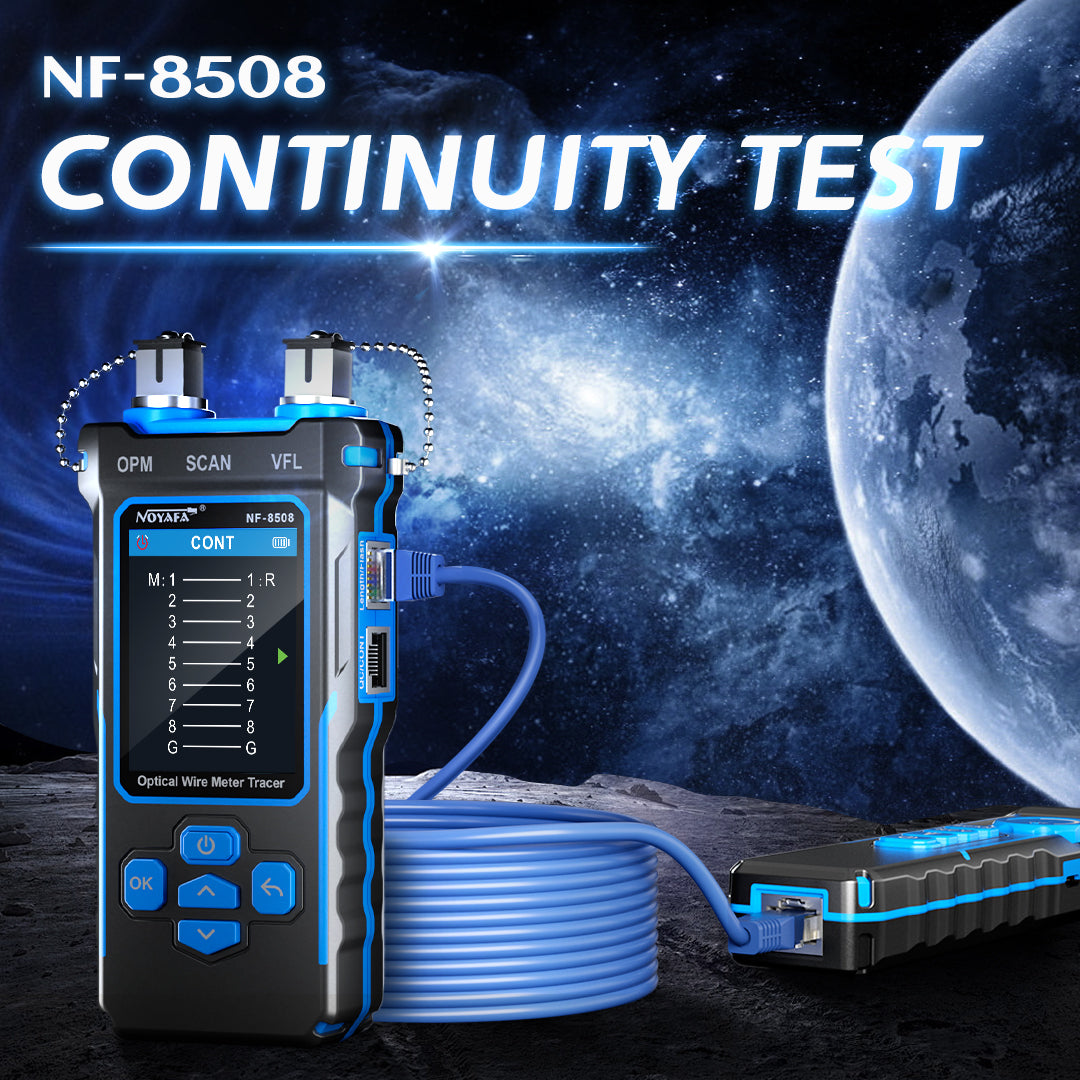

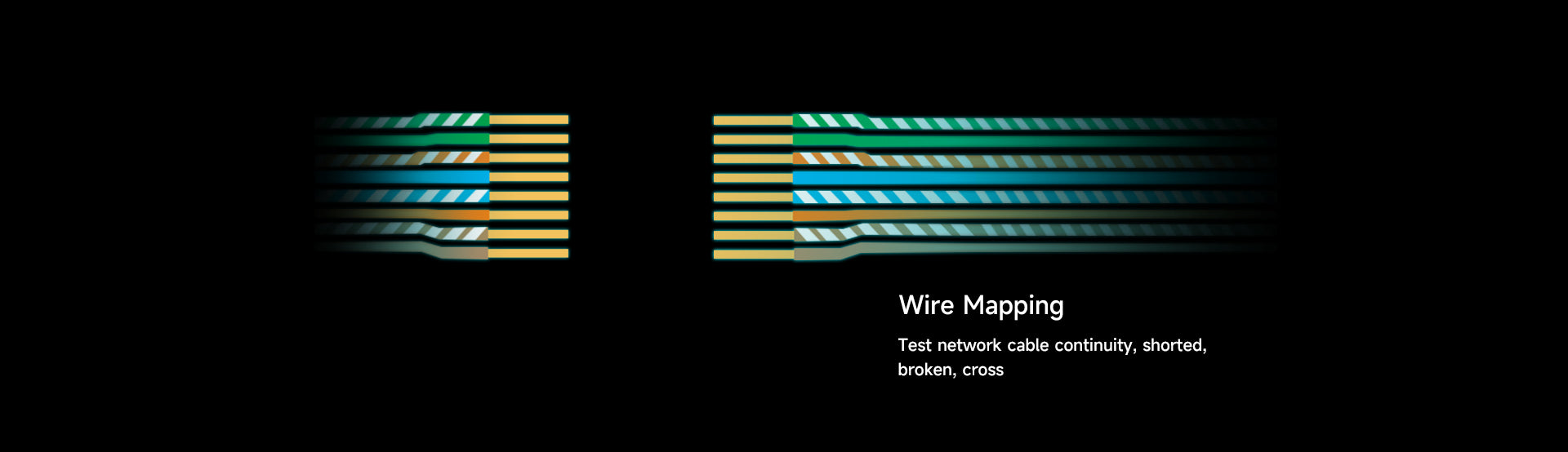

Draht Mapping & Continuity Test: Überprüfen Sie den Status Cat5 & Cat6 -Kabel. Zeigen Sie auf einem LCD -Bildschirm die Länge und genaue Fehler wie Öffnungen, Spaltungen, Shorts und Kreuzungen an.

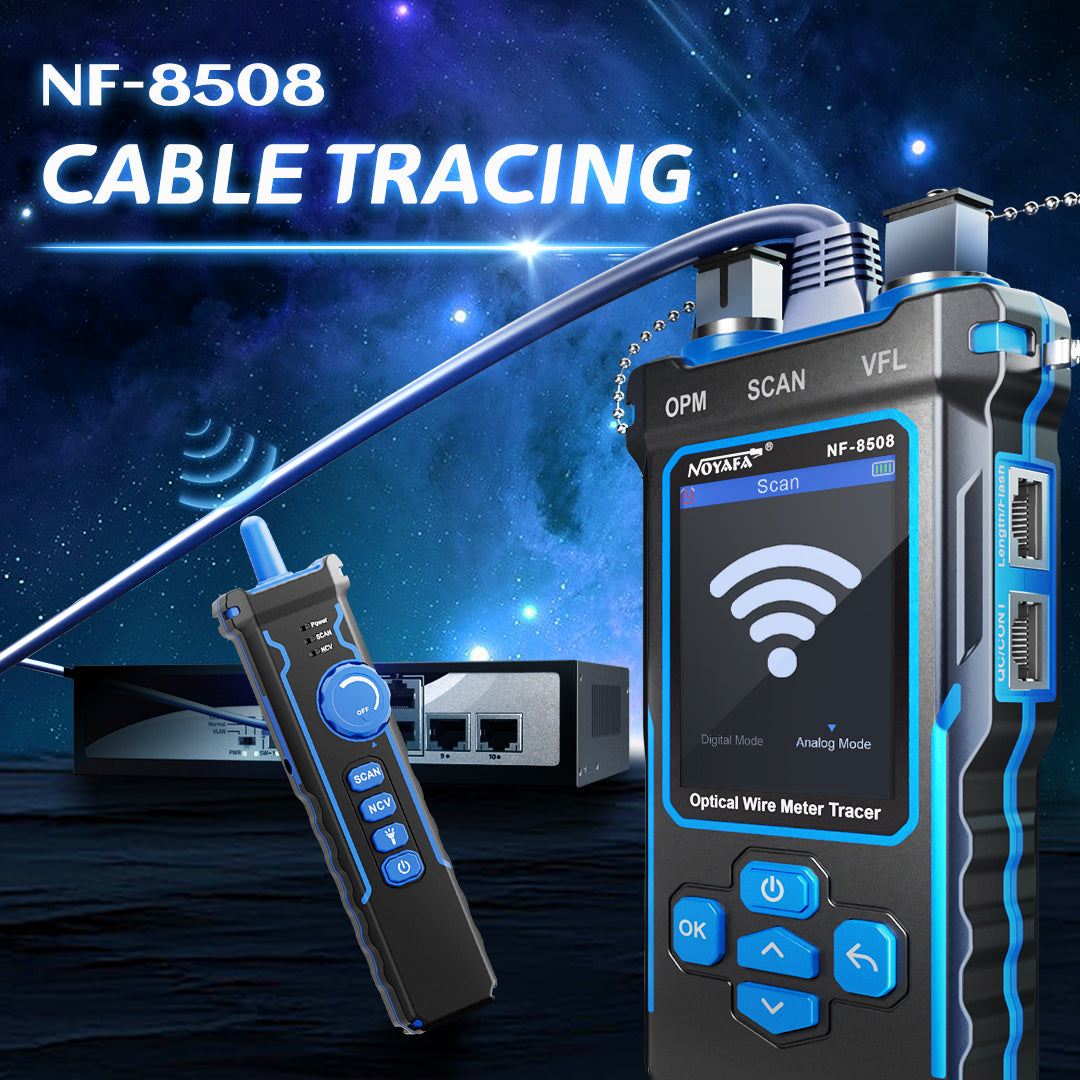

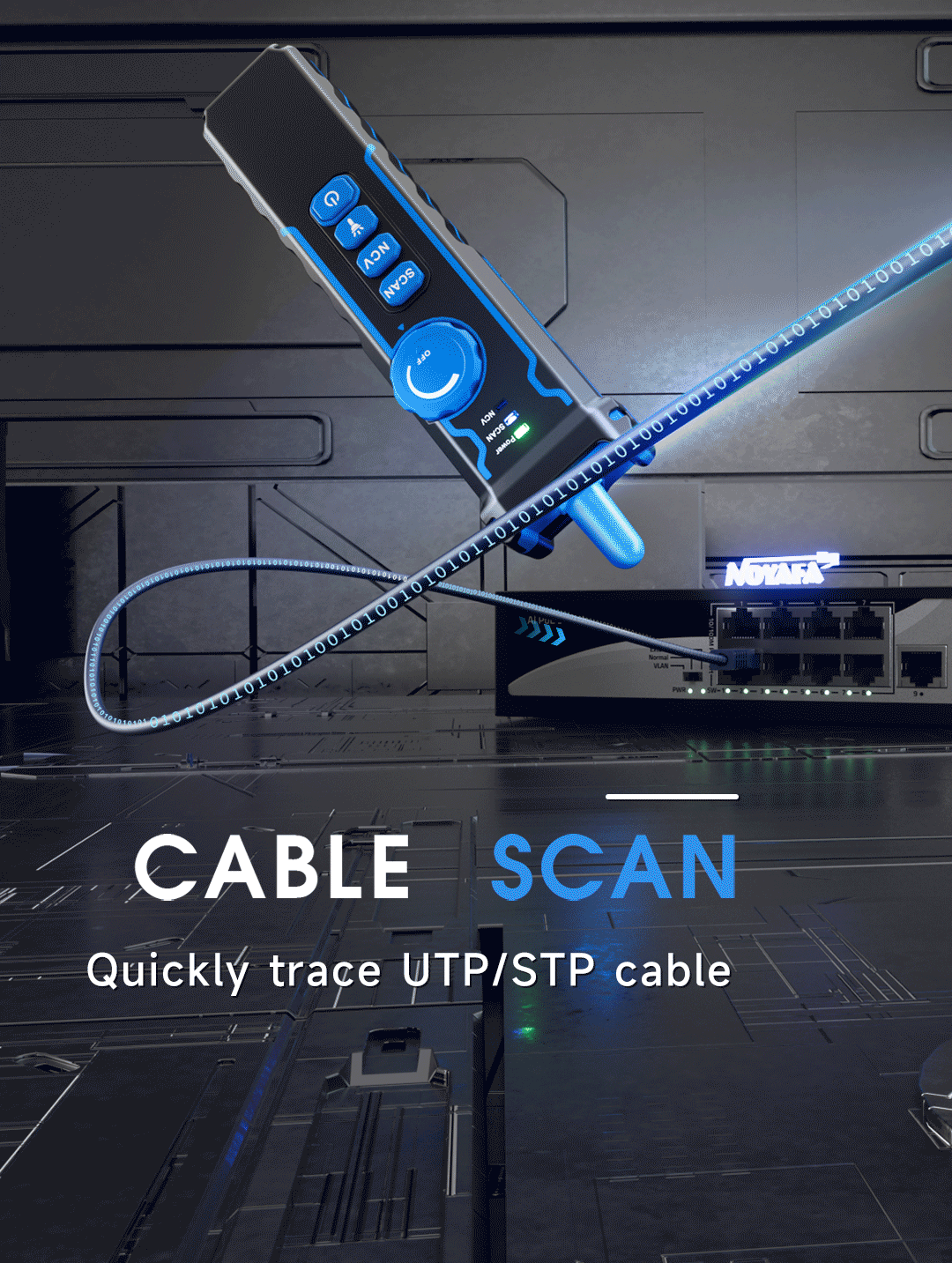

Kabelspur: Einstellbarer Signalstärkeindikator hilft, Kabel aus gebündelten Kabeln, verschiedenen Räumen, Wänden und Decken zu finden. (300 Meter/984 Fuß).

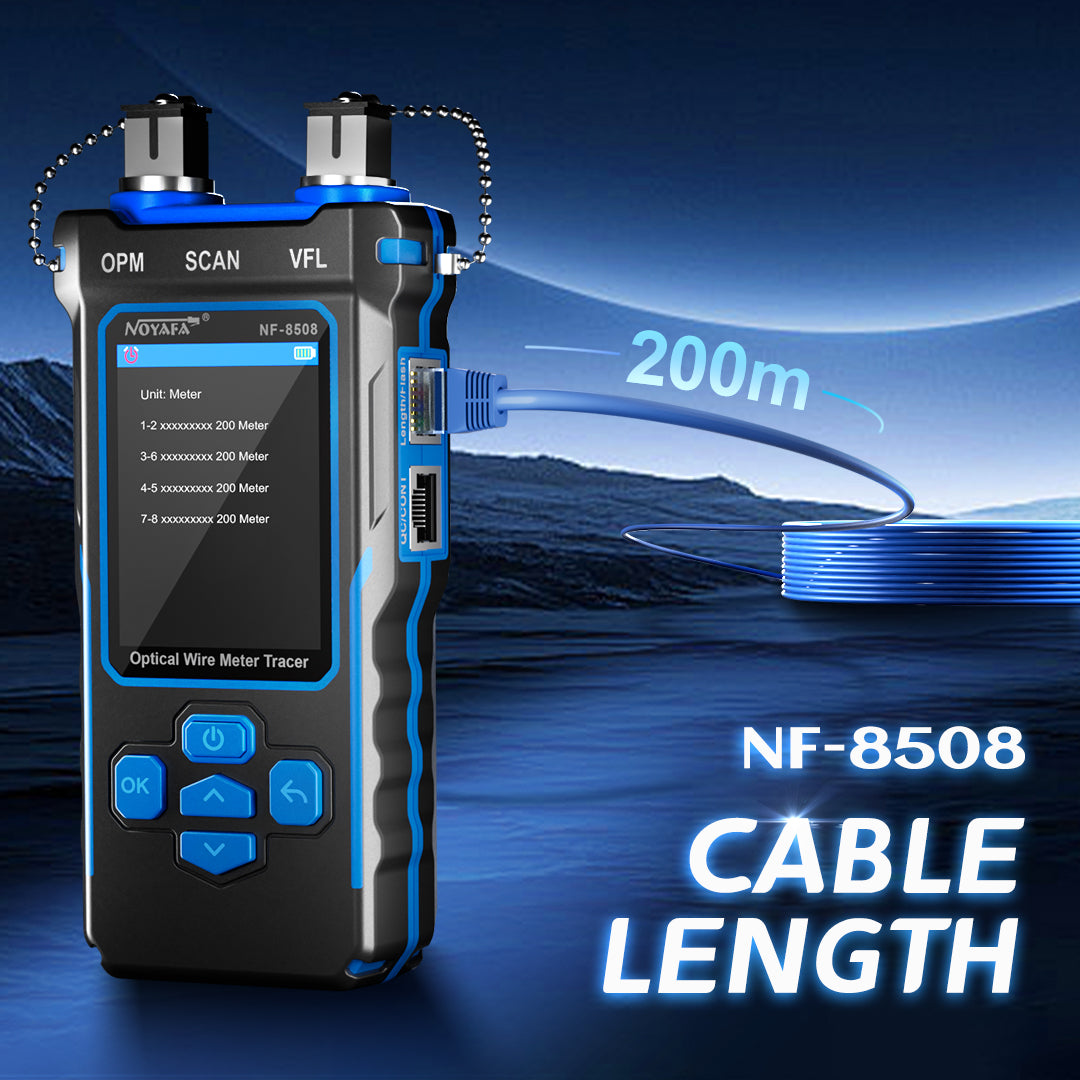

Längentest: Messen Sie die Länge von CAT5/CAT5E/CAT6 -Kabeln bis zu 200 Meter (656 Fuß). Helfen Sie mit, die geeigneten Kabel für die Installation vorzubereiten.

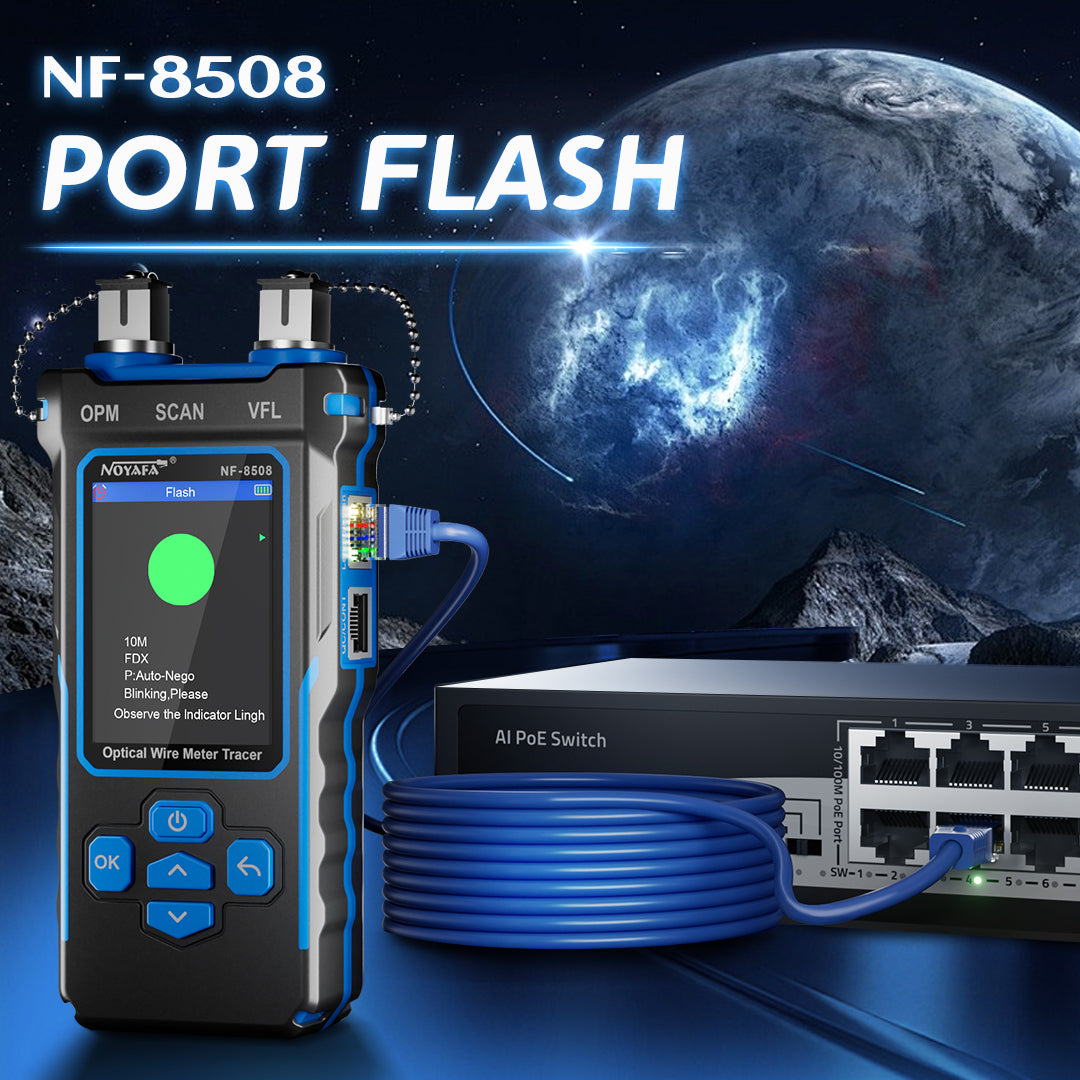

Portblitz: Senden von Signalen über angeschlossene Kabel an Blitzanschlüsse an 10 m/100 m/1000 m Hubs, Panels, Routern oder Schalter. Synchronisierungsfrequenz blinkt auf dem Bildschirm Port & LCD.

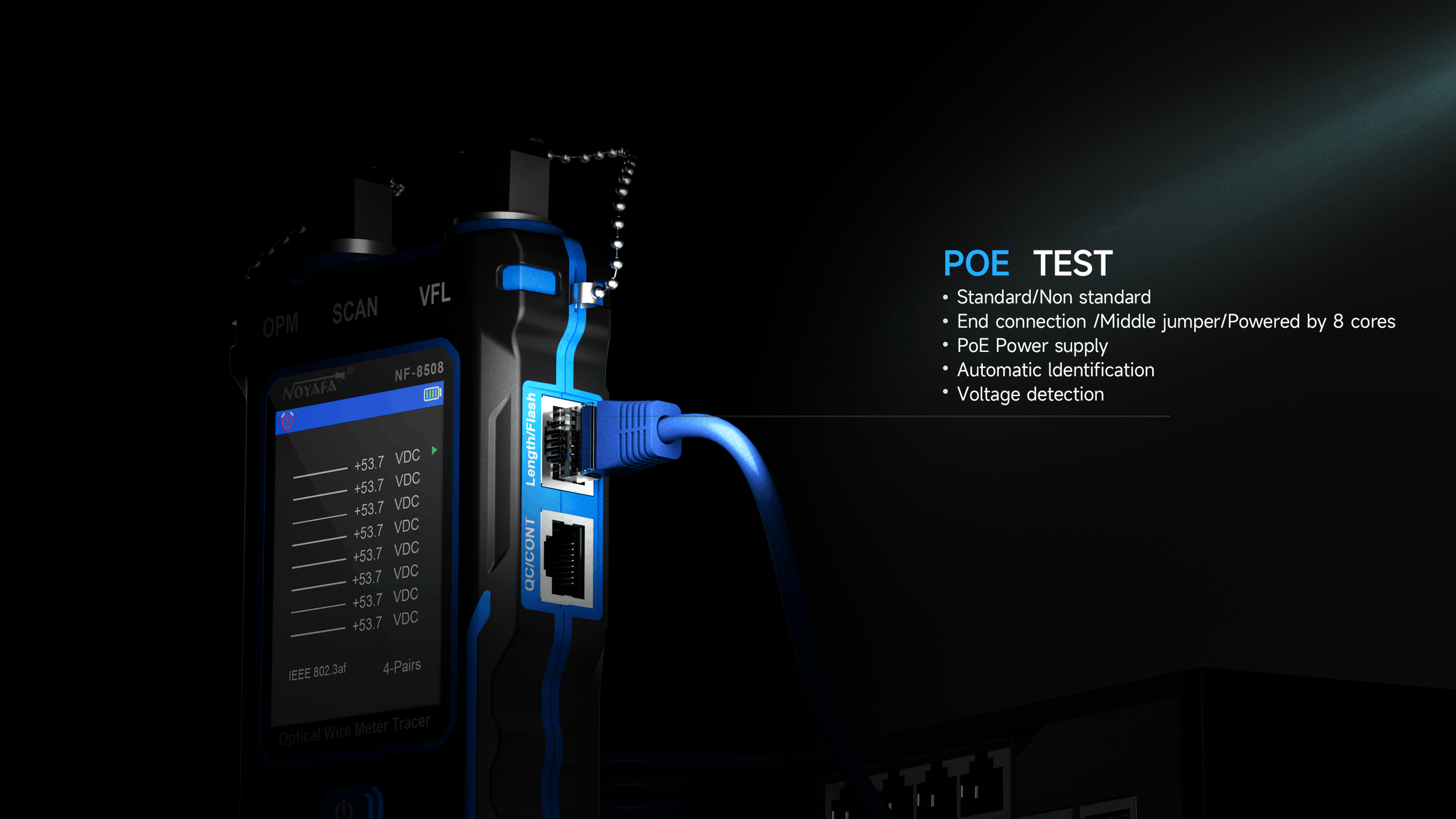

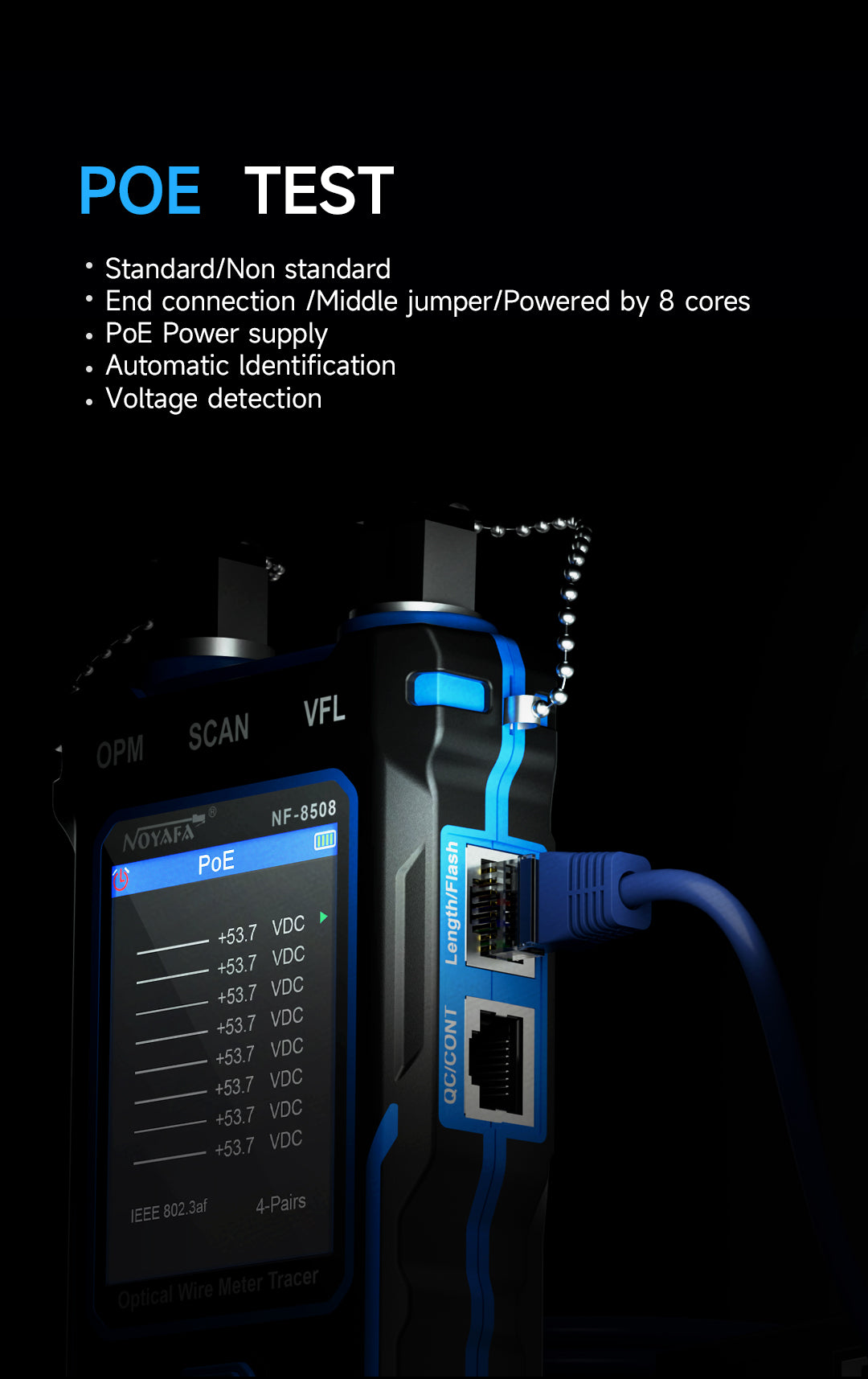

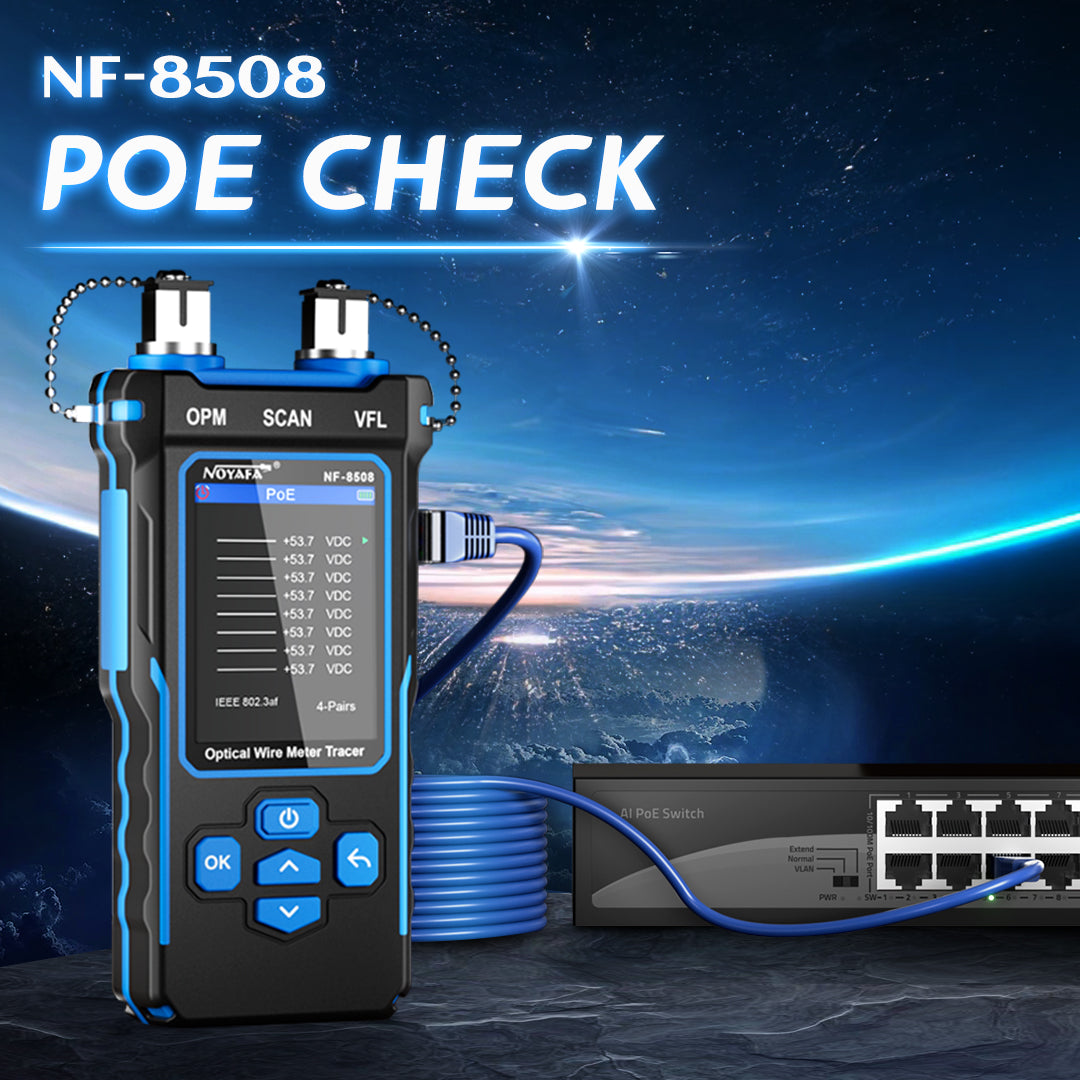

POE -Test: Diagnose des POE -Netzwerks durch Auflisten von Stiften der Netzteil und anderen Status wie Spannung, Polarität und PSE (AF oder Standard).

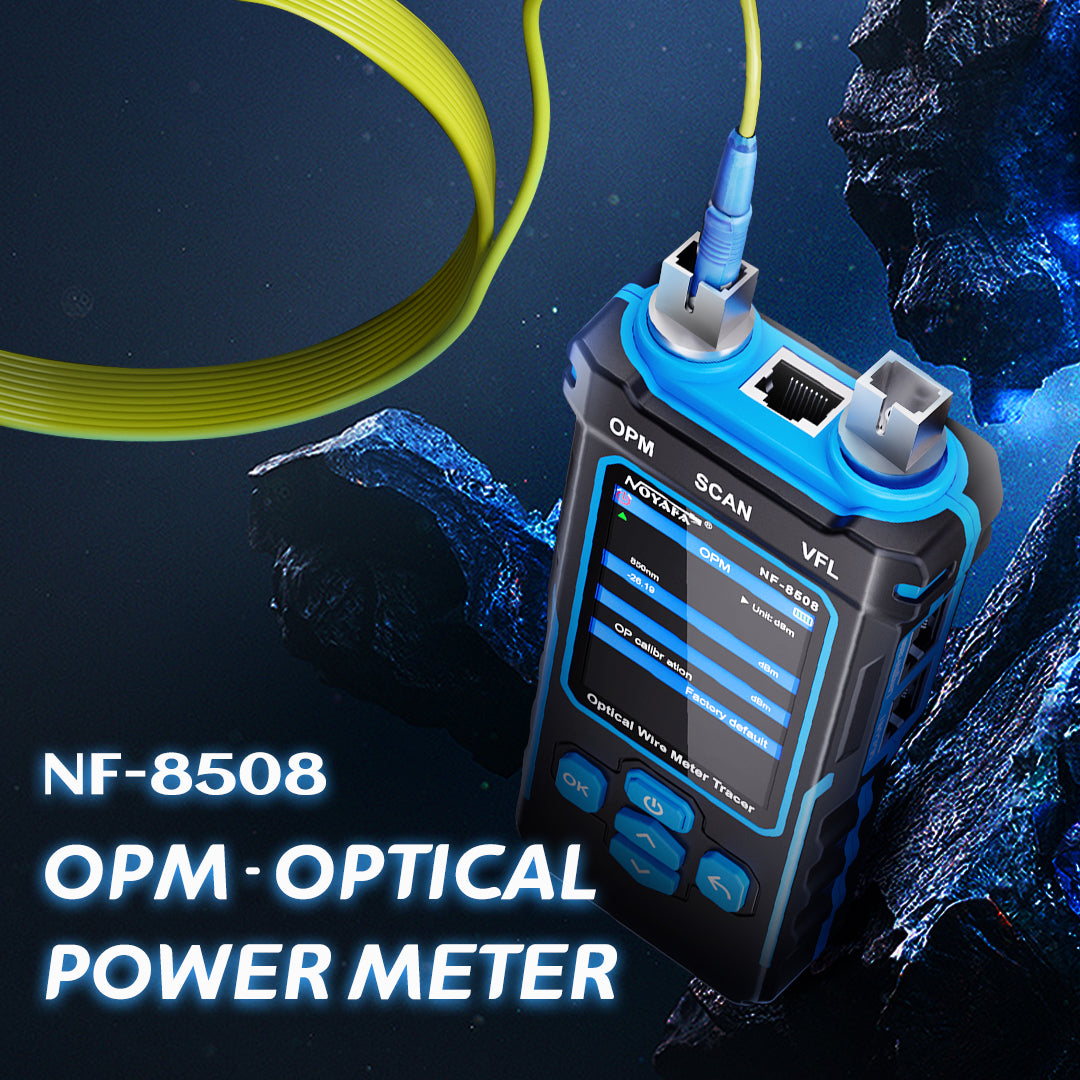

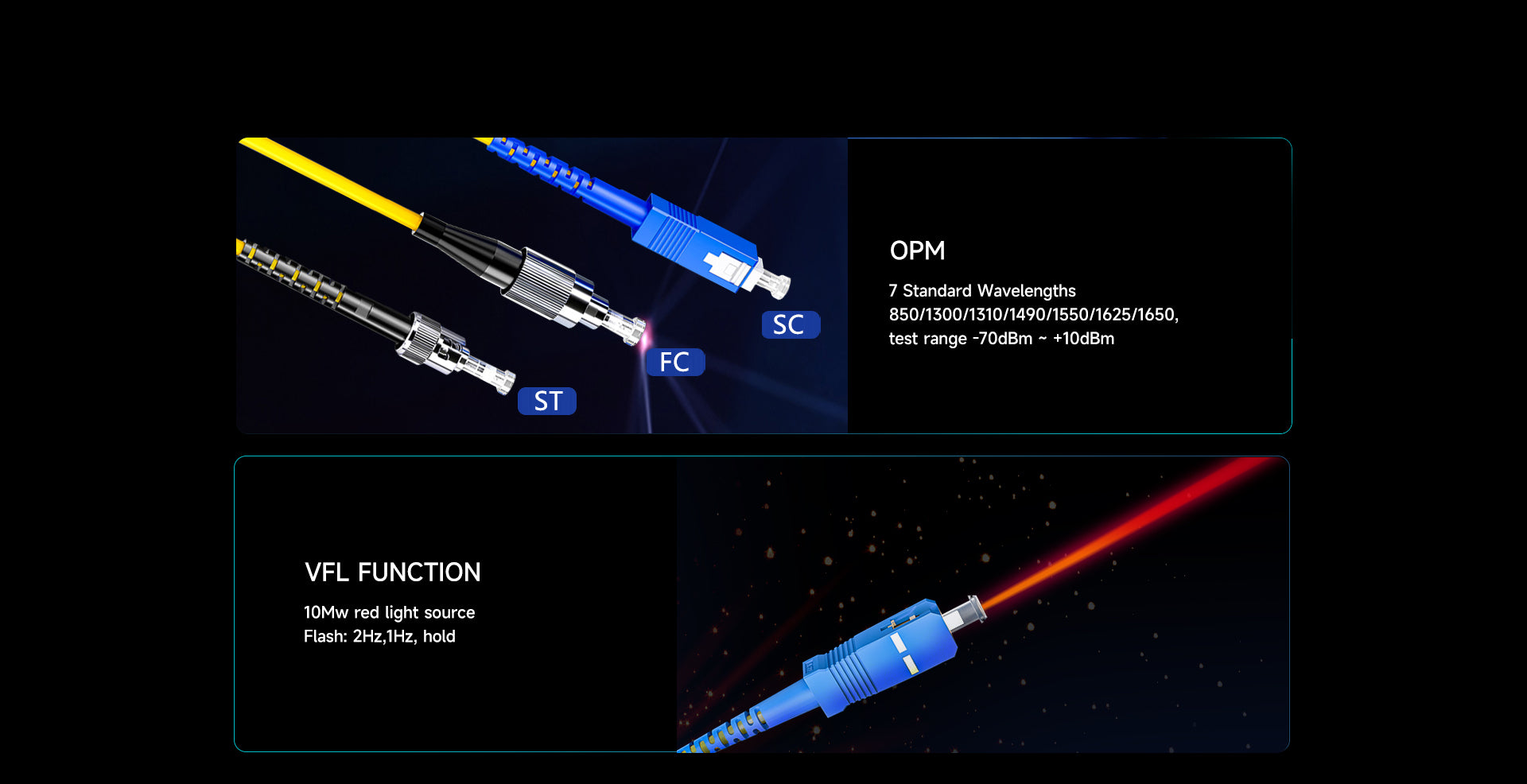

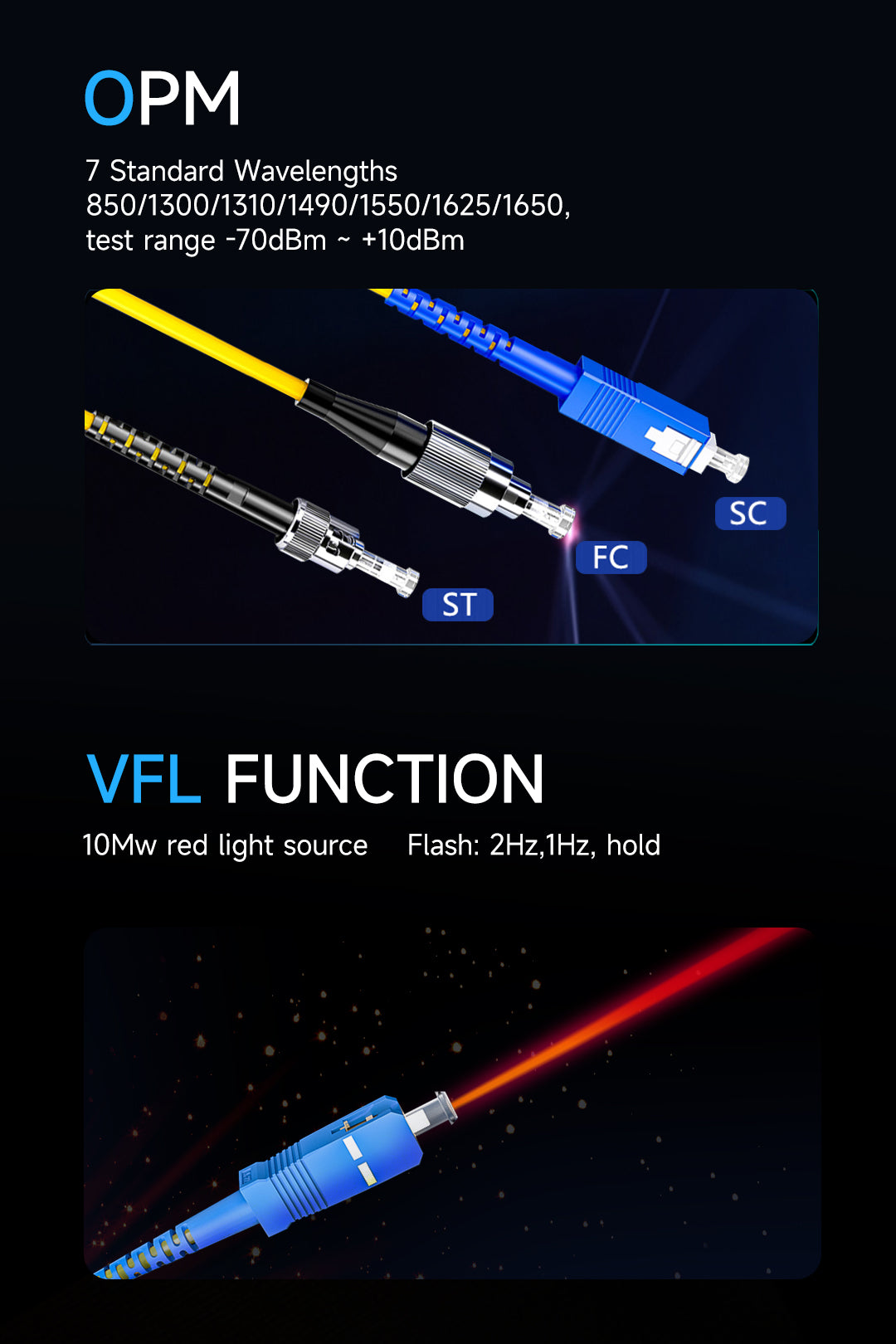

OPTISCHER MEHR METER: Messen Sie die optische Leistung und den Verlust in den optischen Einzelmodus-Fasern.

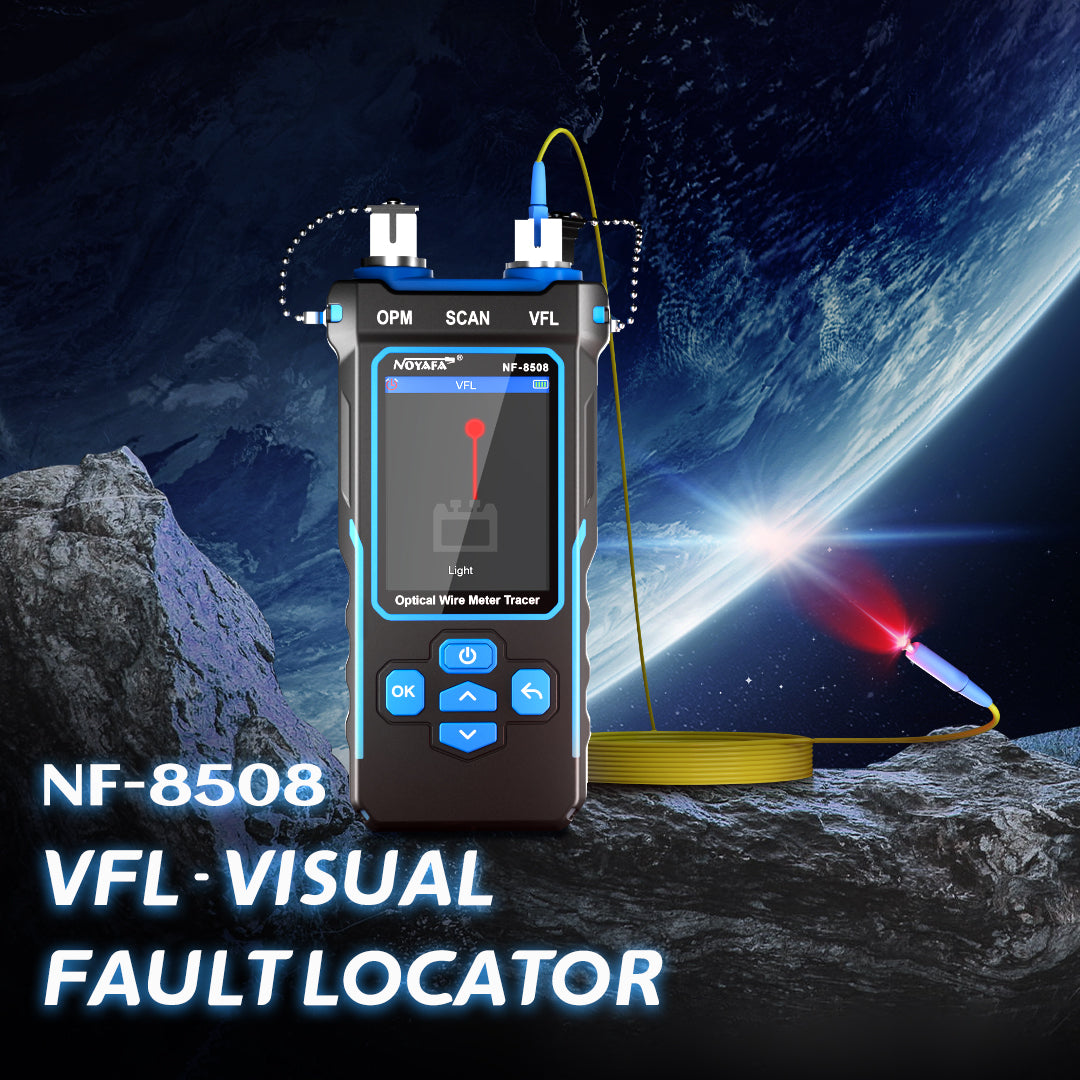

Visueller Fehlerlokator: Navigieren Sie mit sichtbaren roten Lichtern schnell Glasfaserunterbrechungspunkte.

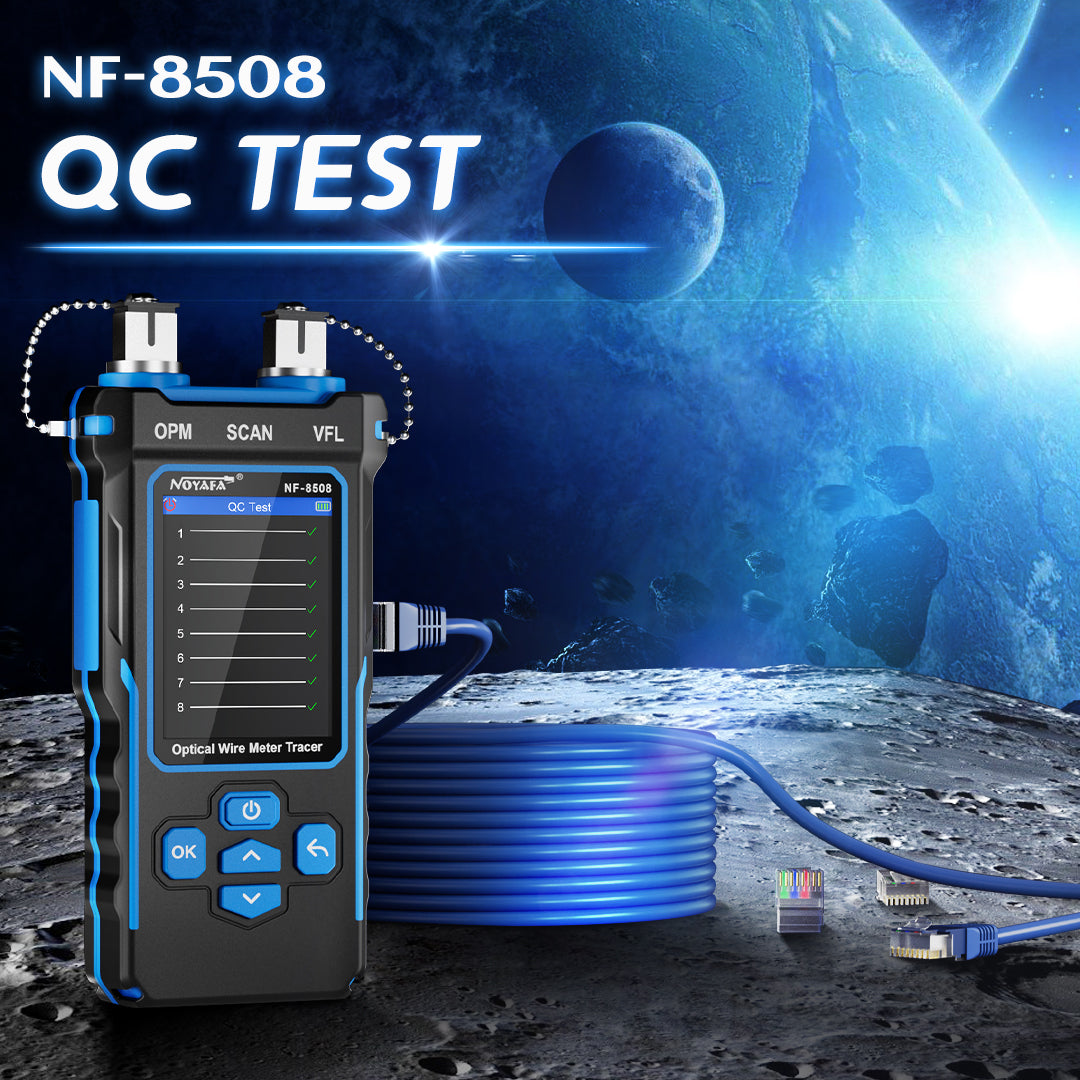

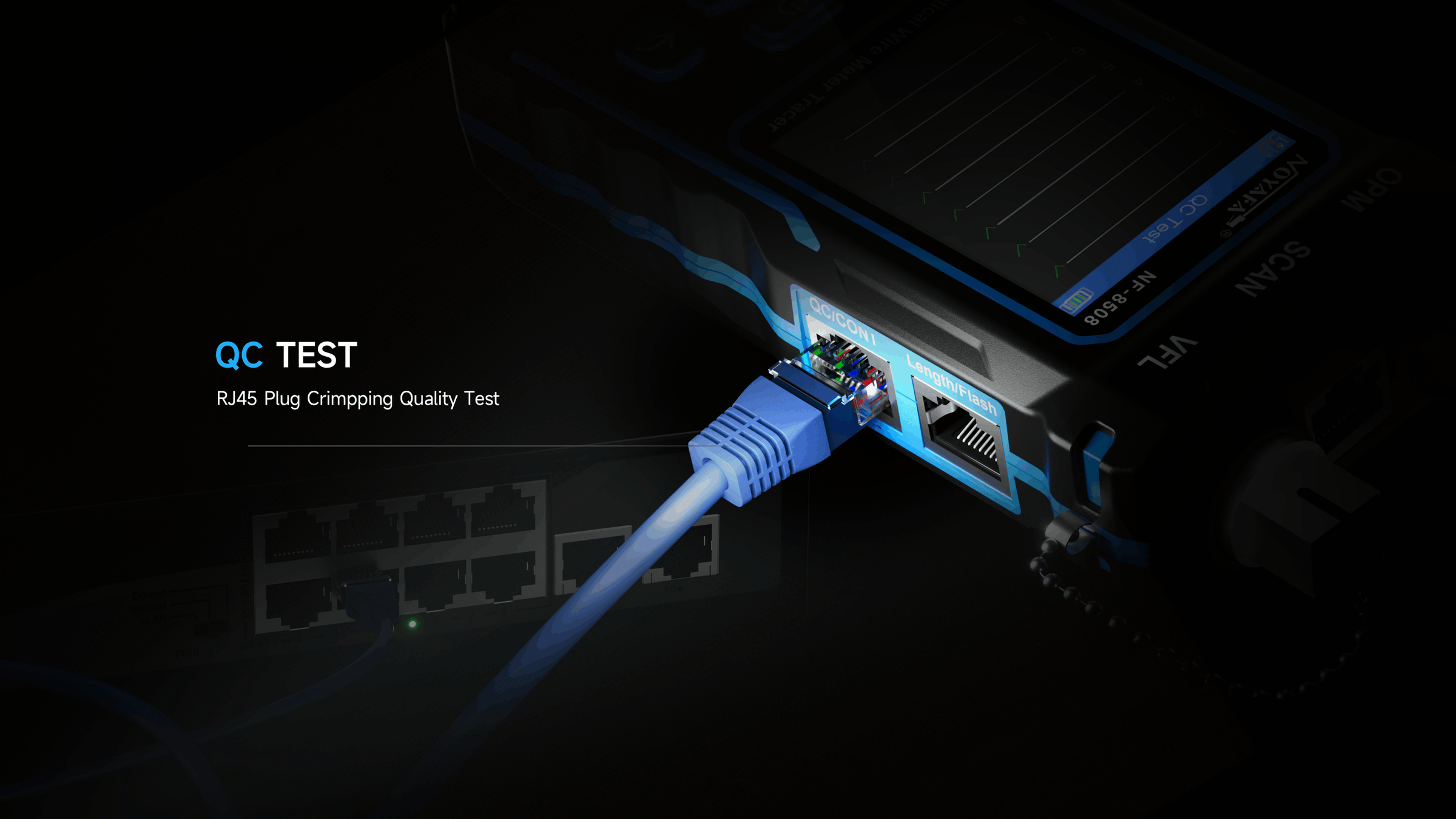

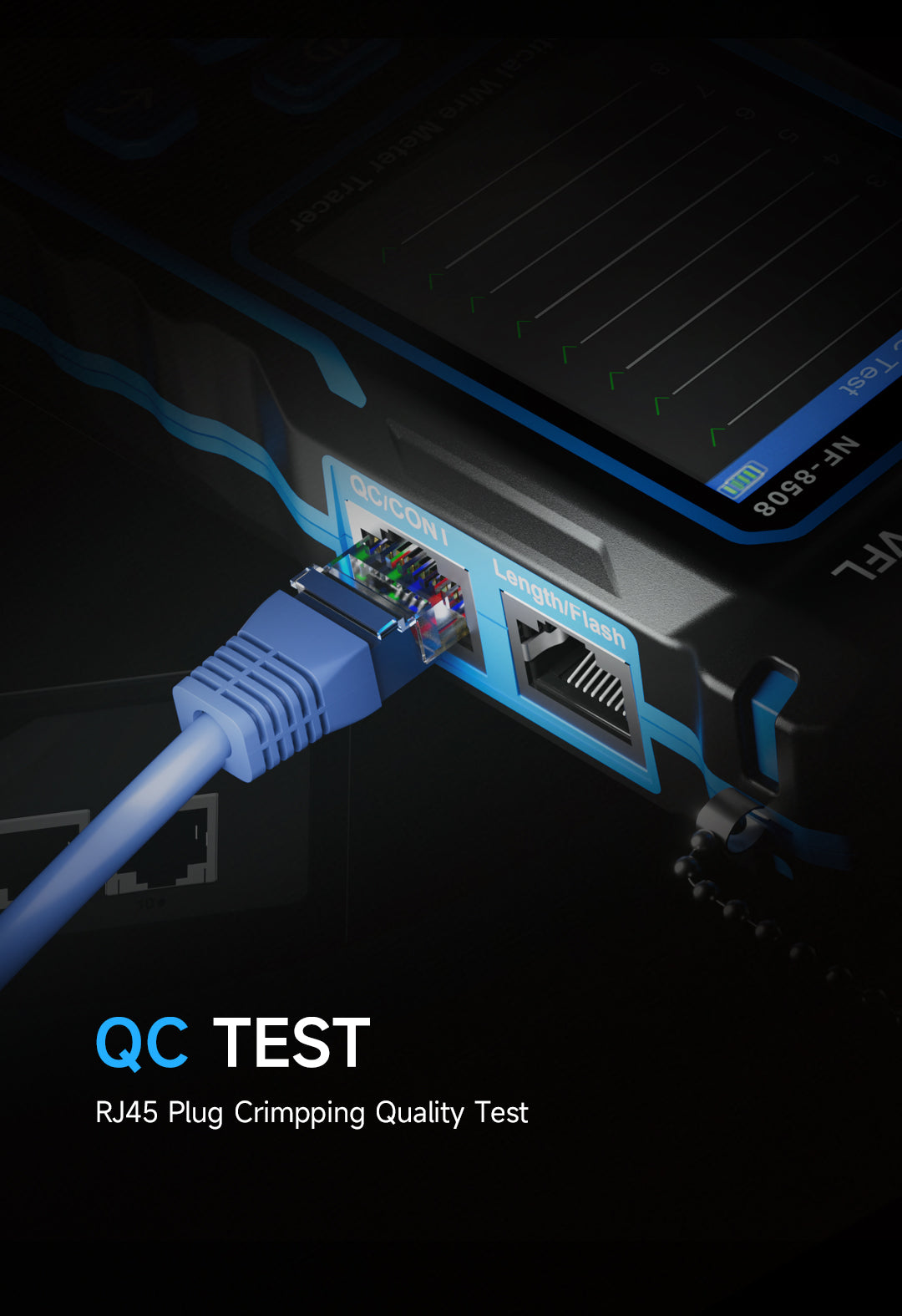

RJ45 -Kopftest: Sagen Sie, ob RJ45 -Steckverbinder ordnungsgemäß geknallt sind.

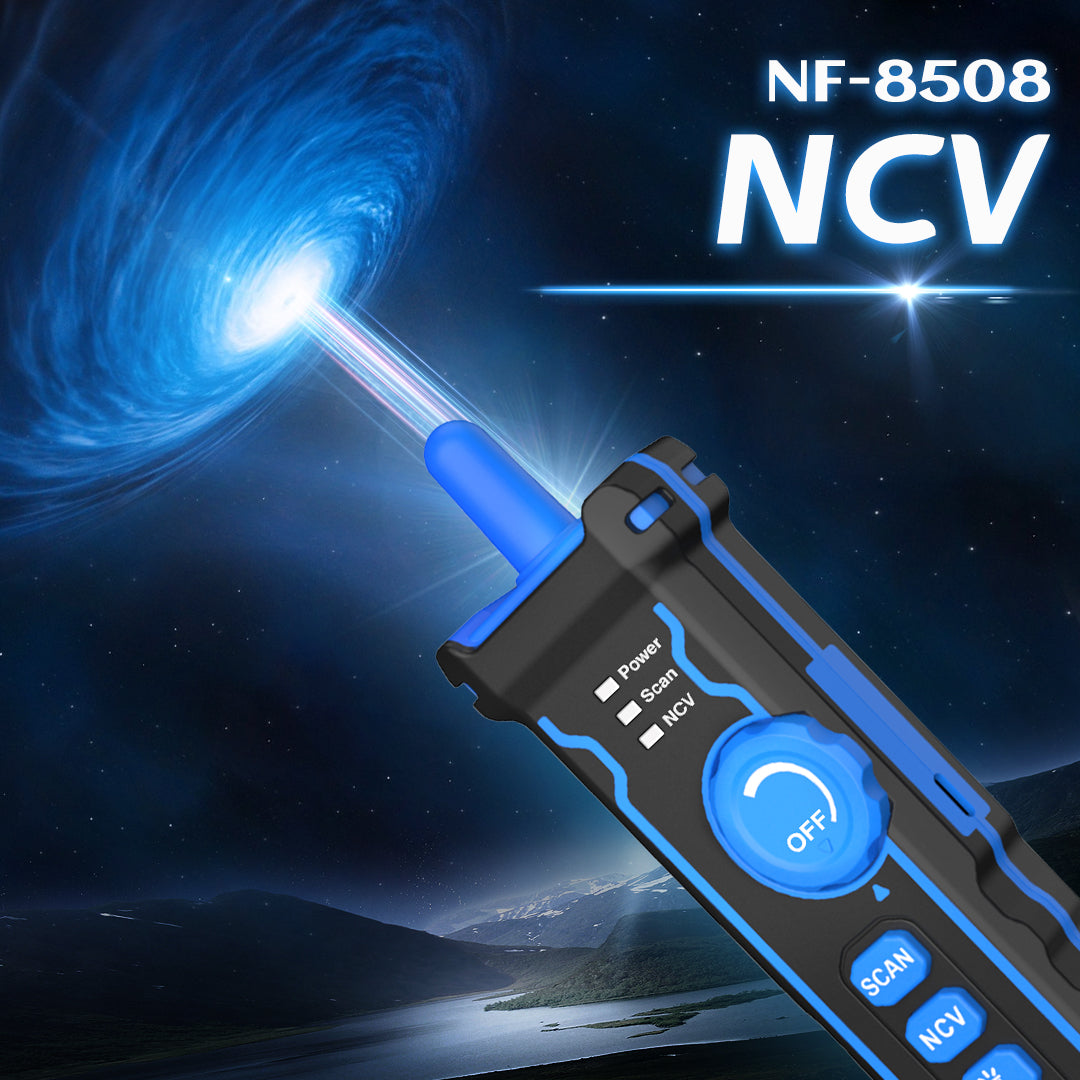

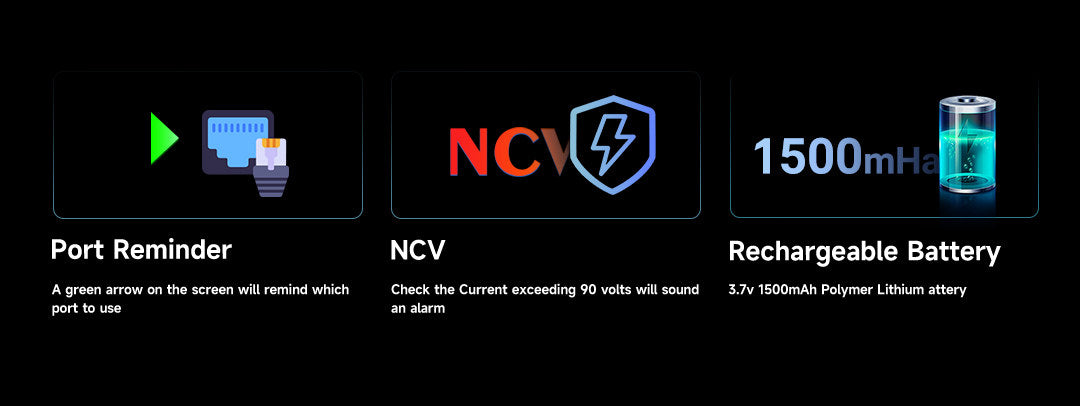

NCV: Nichtkontakt-Spannungsdetektor für die Empfängerpegel erhöhen die Sicherheit und verringert die Chancen von Schäden von Geräten.

Kabelart: Cat5/Cat6

Spannungsschutz: 60 V

Details der CONT -Funktion:

Scanfrequenz: 455 kHz

Portblitz: √

Details zur Längenfunktion:

Genauigkeit: ≤ 20 m +/- 1,6 m, 20 m ~ 100 m +/- 2,4 m,> 100 m +/- 3,2 m

Details der Poe -Funktion:

Standard/Nicht -Standard
Endverbindung /Mittelspringer /angetrieben von 8 Kernen
Poe -Stromversorgung

NVL: 10 mw

OPM: 1310/1550/1625 (Single-Mode-Wellenlänge)

Crimp: RJ45-8 Kerne, min Länge beträgt 210 cm

Stromversorgung: 3,7 V 1500mAh Polymer Lithiumbatterie

Aufladung : Typ-C-Anschluss

NCV: √

Lampe: √

Niedrigere Spannungswarnung: √

Noyafa NF-8508 Kabeltester & Tracer-Benutzerhandbuch

[{"id":49594472595731,"title":"NF-8508","option1":"NF-8508","option2":null,"option3":null,"sku":"NF-8508","requires_shipping":true,"taxable":false,"featured_image":{"id":48734601085203,"product_id":8742145360147,"position":1,"created_at":"2025-02-20T23:39:12-08:00","updated_at":"2025-02-20T23:39:35-08:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-8508_9-in-1_Network_Cable_Tester_-_official.jpg?v=1740123575","variant_ids":[49594472595731]},"available":true,"name":"Noyafa NF-8508 Multifunktionstester für RJ11\/45, POE, Faser-Optik - NF-8508","public_title":"NF-8508","options":["NF-8508"],"price":9498,"weight":500,"compare_at_price":11889,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":40684344836371,"position":1,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-8508_9-in-1_Network_Cable_Tester_-_official.jpg?v=1740123575"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":50711180280083,"title":"NF-8508 *2","option1":"NF-8508 *2","option2":null,"option3":null,"sku":"NF-8508 2PCS","requires_shipping":true,"taxable":false,"featured_image":{"id":48991370510611,"product_id":8742145360147,"position":12,"created_at":"2025-03-18T00:44:19-07:00","updated_at":"2025-03-18T00:44:20-07:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-8508_2PCS_f7a53d51-6f23-48ad-b346-2a475446f1c4.jpg?v=1742283860","variant_ids":[50711180280083]},"available":true,"name":"Noyafa NF-8508 Multifunktionstester für RJ11\/45, POE, Faser-Optik - NF-8508 *2","public_title":"NF-8508 *2","options":["NF-8508 *2"],"price":17100,"weight":500,"compare_at_price":18996,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":40848881418515,"position":14,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-8508_2PCS_f7a53d51-6f23-48ad-b346-2a475446f1c4.jpg?v=1742283860"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":49594472628499,"title":"NF-8508 +Toolless RJ45 Connector *2","option1":"NF-8508 +Toolless RJ45 Connector *2","option2":null,"option3":null,"sku":"NF-8508 +Toolless RJ45 Connector *2","requires_shipping":true,"taxable":false,"featured_image":{"id":48094709940499,"product_id":8742145360147,"position":9,"created_at":"2024-11-28T00:42:51-08:00","updated_at":"2025-02-20T23:39:35-08:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-8508_and_toolless_rj45_connector.jpg?v=1740123575","variant_ids":[49594472628499]},"available":true,"name":"Noyafa NF-8508 Multifunktionstester für RJ11\/45, POE, Faser-Optik - NF-8508 +Toolless RJ45 Connector *2","public_title":"NF-8508 +Toolless RJ45 Connector *2","options":["NF-8508 +Toolless RJ45 Connector *2"],"price":9698,"weight":500,"compare_at_price":12089,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":40255609274643,"position":11,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-8508_and_toolless_rj45_connector.jpg?v=1740123575"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":49594472562963,"title":"Toolless RJ45 Connector *10","option1":"Toolless RJ45 Connector *10","option2":null,"option3":null,"sku":"Toolless RJ45 Connector *10","requires_shipping":true,"taxable":false,"featured_image":{"id":48086549365011,"product_id":8742145360147,"position":10,"created_at":"2024-11-26T19:31:52-08:00","updated_at":"2025-02-20T23:42:48-08:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/10-pcs_toolless_rj45_connectors_6bc90f7a-0e11-4dd9-bca5-91e5f86fda2a.jpg?v=1740123768","variant_ids":[49594472562963]},"available":true,"name":"Noyafa NF-8508 Multifunktionstester für RJ11\/45, POE, Faser-Optik - Toolless RJ45 Connector *10","public_title":"Toolless RJ45 Connector *10","options":["Toolless RJ45 Connector *10"],"price":3240,"weight":500,"compare_at_price":6000,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":40249915015443,"position":12,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/10-pcs_toolless_rj45_connectors_6bc90f7a-0e11-4dd9-bca5-91e5f86fda2a.jpg?v=1740123768"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":50718075846931,"title":"NF-8506","option1":"NF-8506","option2":null,"option3":null,"sku":"NF-8506","requires_shipping":true,"taxable":false,"featured_image":{"id":49001444638995,"product_id":8742145360147,"position":13,"created_at":"2025-03-18T23:59:10-07:00","updated_at":"2025-03-18T23:59:11-07:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-8506_Top_Seller.jpg?v=1742367551","variant_ids":[50718075846931]},"available":true,"name":"Noyafa NF-8508 Multifunktionstester für RJ11\/45, POE, Faser-Optik - NF-8506","public_title":"NF-8506","options":["NF-8506"],"price":11999,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":40856206704915,"position":15,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-8506_Top_Seller.jpg?v=1742367551"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":50094132494611,"title":"NF-981 OTDR Tester","option1":"NF-981 OTDR Tester","option2":null,"option3":null,"sku":"NF-981","requires_shipping":true,"taxable":false,"featured_image":{"id":48186377896211,"product_id":8742145360147,"position":11,"created_at":"2024-12-12T16:59:41-08:00","updated_at":"2025-02-20T23:39:35-08:00","alt":null,"width":750,"height":1000,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-981_OTDR_Tester_28149e7c-fa34-41d2-959b-56f06f9af39a.jpg?v=1740123575","variant_ids":[50094132494611]},"available":true,"name":"Noyafa NF-8508 Multifunktionstester für RJ11\/45, POE, Faser-Optik - NF-981 OTDR Tester","public_title":"NF-981 OTDR Tester","options":["NF-981 OTDR Tester"],"price":21311,"weight":500,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":40323027960083,"position":13,"preview_image":{"aspect_ratio":0.75,"height":1000,"width":750,"src":"\/\/www.noyafa.com\/cdn\/shop\/files\/Noyafa_NF-981_OTDR_Tester_28149e7c-fa34-41d2-959b-56f06f9af39a.jpg?v=1740123575"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Compare the NF-8508 and NF-8506

NF-8508

✔️ Cable tracing

✔️ Wiremapping

✔️ RJ45

✔️ RJ11

✔️ Fiber optic cable

❌ OTDR

✔️ PoE Checking

✔️ OPM

✔️ VFL

❌ PING Test

❌ IP Scan

✔️ Port flash

✔️ Lamp

✔️ Crimping test

✔️ NCV

✔️ Length test

✔️ LCD display

✔️ Lithium battery (Type-C)

Buy Now

NF-8506

✔️ Cable tracing

✔️ Wiremapping

✔️ RJ45

✔️ RJ11

✔️ Fiber optic cable

❌ OTDR

✔️ PoE Checking

❌ OPM

❌ VFL

✔️ PING Test

✔️ IP Scan

✔️ Port flash

✔️ Lamp

❌ Crimping test

✔️ NCV

✔️ Length test

✔️ LCD display

✔️ Lithium battery (Type-C)

Buy Now

NF-981

✔️ Portable OTDR

✔️ 1310/1550nm wavelengths (G.652 SM Fiber)

✔️ 24dB/22dB dynamic range

✔️ Blind zone: 10m

✔️ 10m to 60KM test range

✔️ Pulse width: 5ns - 10us

✔️ ± (1m + Sampling Interval + 0.005% x Test Distance) accuracy

✔️ Reflection Accuracy: ±3dB

✔️ FC/PC or FC/APC (Interchangeable SC、ST)

✔️ OPM & VFL

✔️ Source light

✔️ RJ45 cable continuity test

Buy Now
