Name: NOYAFA NF-8209S Network Cable Tester and Tracer with Anti-jamming Porbe, Crimp, PoE Port
Brand: My Store
SKU: NF-8209S
Price: 64.15 USD
Availability: InStock

NOYAFA NF-8209S Network Cable Tester and Tracer with Anti-jamming Porbe, Crimp, PoE Port

NF-8209S Network Cable Tester Product Parameters

NF-8209S Network Cable Tester Product Details

NF-8209S Network Cable Tester Product Package

NF-8209S Network Cable Tester Product Tutorial

$68.98 USD $64.15 USD

Shipping calculated at checkout.

Model

NF-8209S

NF-8209S*2

NF-8209S + Toolless RJ45 Connector *2

Toolless RJ45 Connector *10

NF-8508

Compare the NF-8209S and NF-8508

Beware of low-priced refurbished devices. Buy official.

30-Days Money Back Guarantee

In stock, Fast Free Shipping

Quantity

Buy more and save more

BUY OVER $300 USD for 10% OFF: Copy code BF300TEN
BUY OVER $600 USD for 15% OFF: Copy code BF600ELV
BUY OVER $1,000 USD for 20% OFF: Copy code BF1KTEW

Features & Benefits

Locate The Target Cable Quickly - Two scanning modes, analog and digital, can be switched at any time, with an anti-jamming probe, adjustable sensitivity, tone generator, and LED light, so that the receiver can quickly and accurately locate the target cable in a wide variety of complex environments.
Ethernet Continuity Test - Analyze CAT5 CAT6 (STP & UTP) line faults, such as normal, open circuit, short circuit, and cross, and see the results instantly.
Measure Cable Length Accurately - Measure the network cable in the range of 2.5m-500m.
Port Blink Test - Identify the network port by the blinking port light on the Hub or Switch. Available to 10M/100M/1000M Hub/ switch.
PoE Testing - Identify which pins are providing power and detect how much voltage, and identify which type of PSE (AT/AF standard).
Work Safely - Non-Contact Voltage (NCV) tester detect AC voltage (70V-1000V) without disrupting the electrical system, providing you with maximum safety and convenience.
Rechargeable Battery- The network tester can be recharged using a USB-C cable, and the lithium battery provides long-lasting power.
Other Functions - Quality control of the crimping crystal.
Certification - Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
100% Affordable - Manufactured in China and a lot cheaper than competitor products with similar quality. Like Fluke.

Wiremap:

Cable types: CAT5/CAT6
Cable sequence and fault testing: Normal, open circuit short circuit, cross,etc
STP/UTP: Both compatible
Max range: 600m / 1,968ft

QC Test:

Test type: 8P
Response speed: No longer than 1 second
Minimum recognition: 10cm / 3in

Length:

Test line: CAT5 & 6
Test range: 2.5 - 200m /8 - 656ft
Accuracy: ≤20m±4.6m; 20-100m ±2.4m; >100m±3.2m

Scan:

Cable type: CAT5 & 6
Max signal voltage: 5V ± 1.0VP-P
Frequency: 455KHz
Dual mode: Analog / digital mode
Max range: 600m / 1,968ft

PoE:

Voltage test range: DC 5-60V
Power supply core jumper mode: End jumper, middle jumper, 8-core power supply, unknown.
PSE type: Non-standard, IEE802.3at/af

Port Blinks

Full-duplex/ half-duplex recognition
Auto-negotiation/ non-auto-negotiation
Switch type: 10m/100m/1000m

Transmitter:

LCD Display: 180*64 with backlight
Language: Chinese/English
Ports: RJ45 * RJ11
Power supply: 3.7V 1400mAh polymer lithium battery
Low battery power indication: yes
Auto-off: 15/30/60min or off
Voltage protection: DC60V
Maxi working current: ≤200mA
Size: 125*70*32mm

Receiver:

Adjustable scan strength: Yes
NCV: AC70V - 1000V 50/60Hz
Voltage protection: DC 60V
Maxi working current: ≤200mA
Ports: RJ45
Voice prompt: yes
Headphone jack: yes
LED: Power indication & LED lighting
Power supply: 3.7V 1400mAh polymer lithium battery
Size: 198*50*30mm

NOYAFA NF-8209S Instruction

NOYAFA

18 Years in Cable Testing and Tracing R&D and Manufacturing.

Our Story

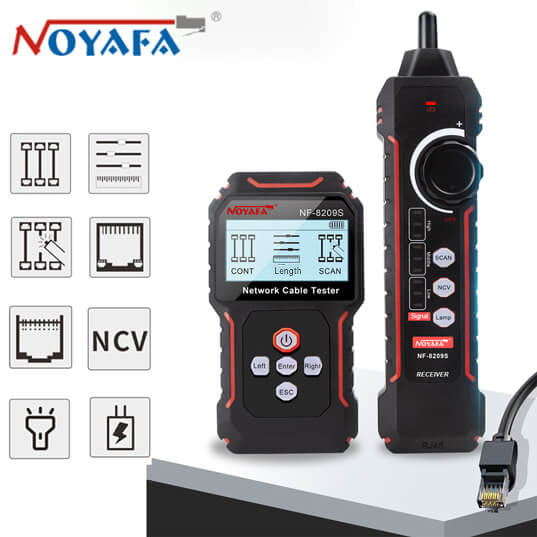

NOYAFA NF-8209S

All-in-one Network Cable Tester

Add NF-8209S to your toolbox and fix all ethernet issues easily. Start wiremap checkup, path tracking, length measure for network cables. Locate ports on ethernet switch or router and run link test.

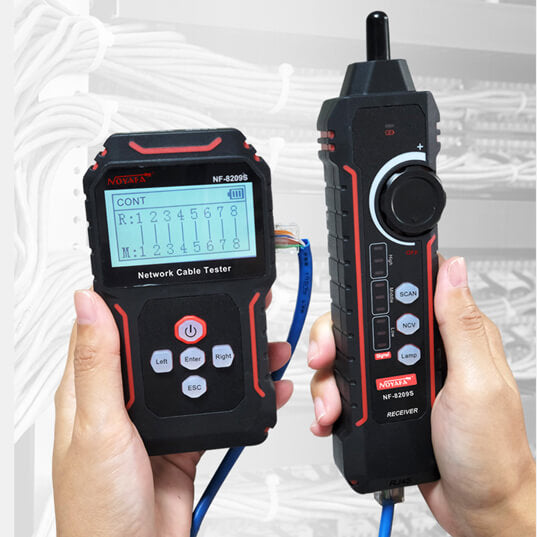

RJ45 Test

Check Cable Continuity

Plug and test open, short, cross, etc. for RJ45 ethernet cables.

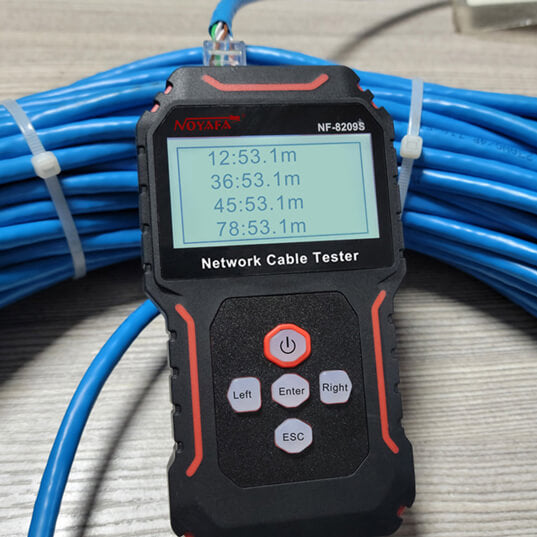

RJ45 Length Meter

Measure the length of 8 wires of a network cables with 99% accuracy.

Supported test range: 8.2 - 1,640ft / 2.5 - 500 meters.

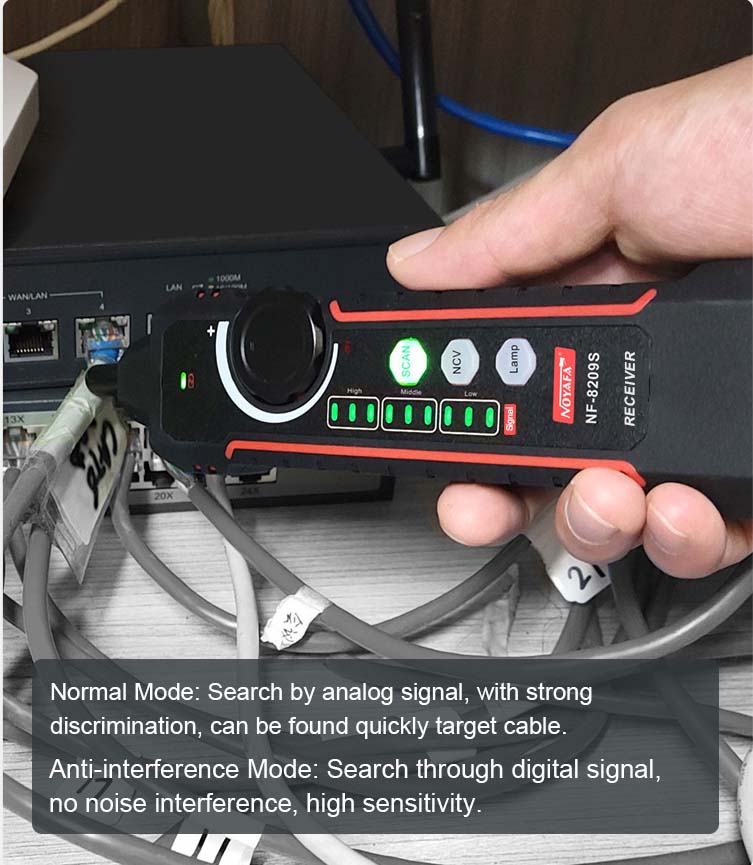

Dual mode

Cable Scanning

Anti-interference mode and normal mode can be switched at will, and are widely used in engineering wiring, equipment room maintenance, equipment update and other scenarios.

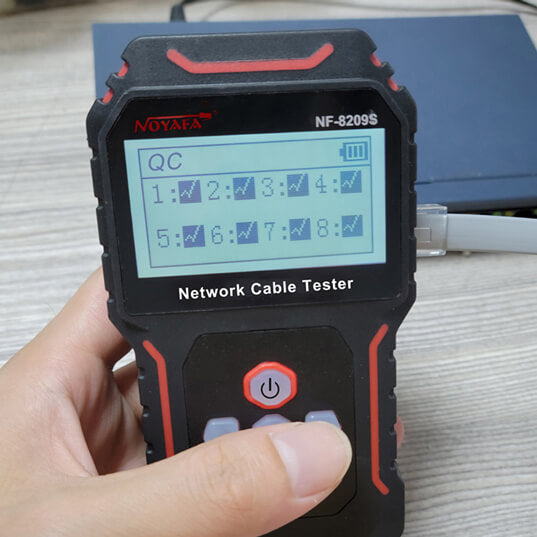

Crimp Test for RJ45 Connector

Plug in an RJ45 cable into the QC port and quickly run a crimp test. Identify any wiring issue of the connector.

Locate Ethernet Port on Switch or Router

identify the docking port

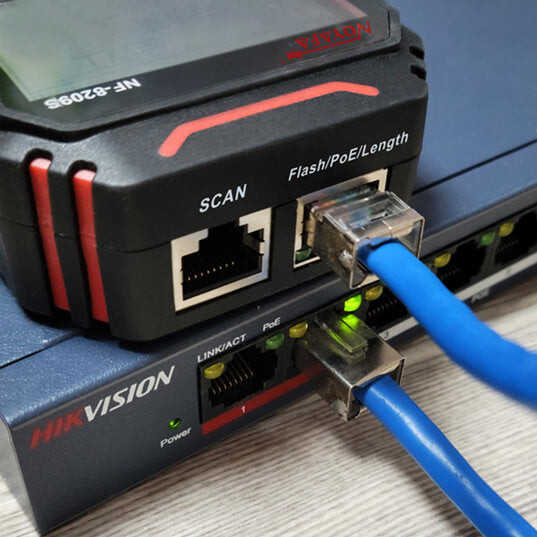

Port Blinks

Connect a working ethernet cable to the Flash/PoE/Length port. Or connect a wall ethernet port via a testing cable. Locate the corresponding port on a switch via the flashing light at the same frequency.

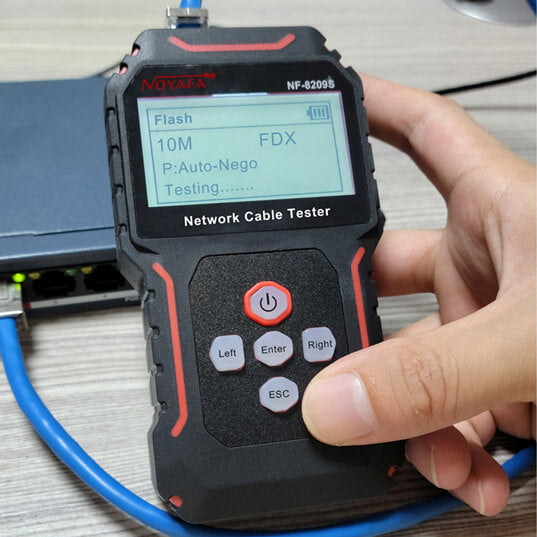

Link Test

Automatically perform link test while the port blink function is in progress.

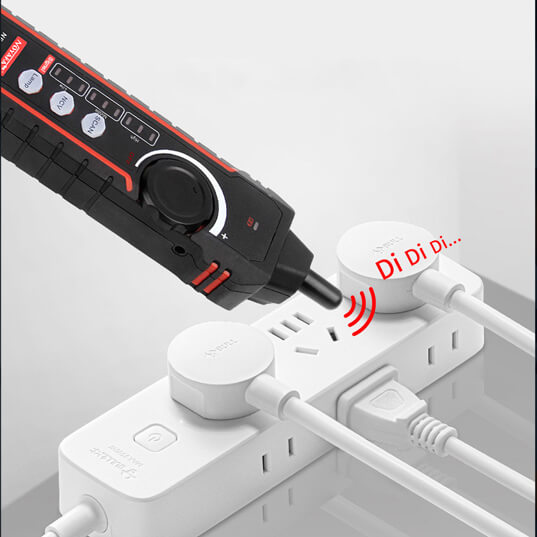

NCV Induction Pen

Hover over objects, electric components, and surfaces. Tell immediately when an object contains electricity.

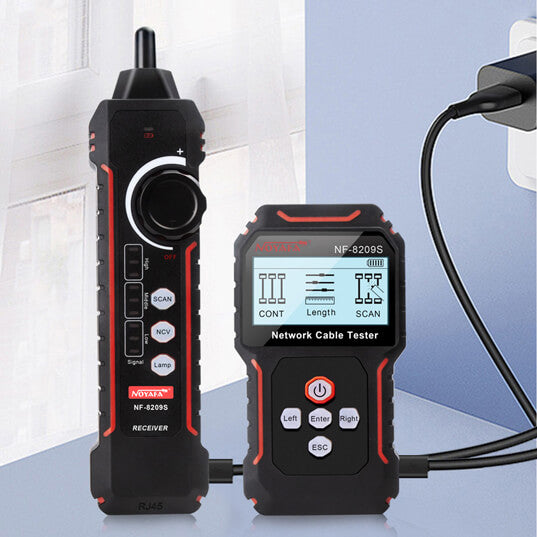

Lithium battery

USB Type-C Charging

Equipped with a 1,400mAh polymer lithium battery, NF-8209S suports a long working time with Type-C recharging.

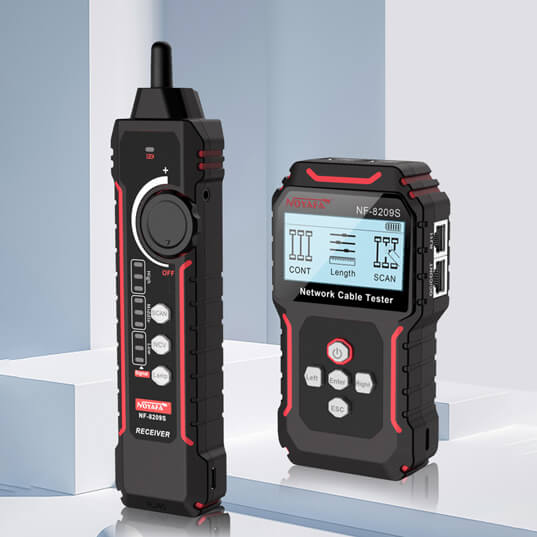

Two-Color Injection Molding

The inner layer is a hard shell, sturdy and resistant to failing, and the outer layer feels comfortable.

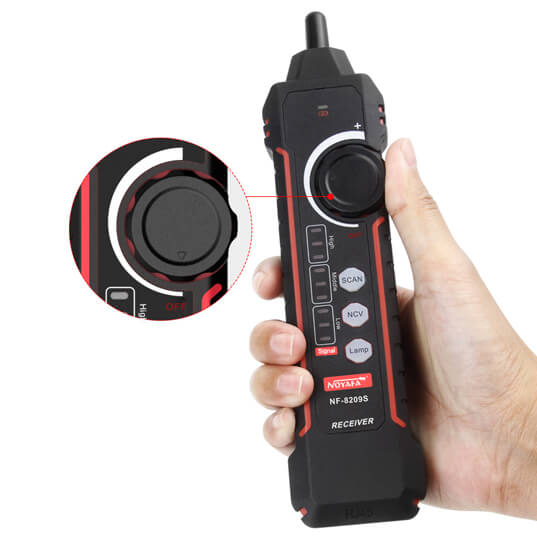

Probe and Tone Generator

Sensitivity Adjustable

Based on different situations, adjust the sensitivity of the probe. Find the cable accurately even among messy cables.

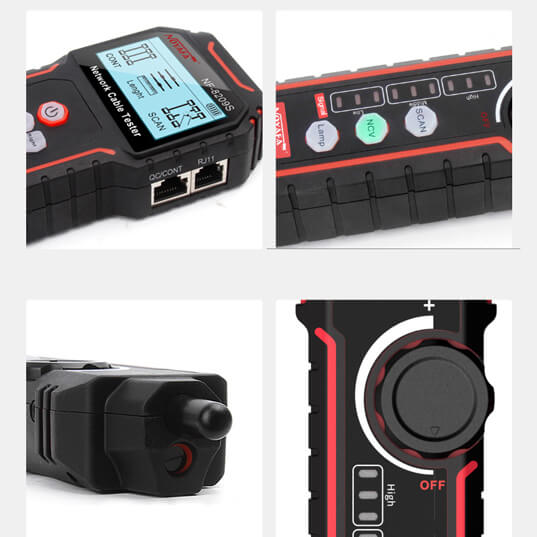

Focus on Details

High standard RJ45 interface. Translucent Silicone combined mode light. Condenser lens LED flashlight. Adjustable sensitivity knob.

Compare the NF-8209S and NF-8508

NF-8209S

✔️ Cable tracing

✔️ Wiremapping

✔️ RJ45

✔️ RJ11

❌ Fiber optic cable

✔️ PoE Checking

✔️ Port flash

✔️ Lamp

✔️ Crimping quality

✔️ NCV

✔️ Length test

✔️ LCD display(128*64)

✔️ Lithium battery (Type-C)
