Name: NOYAFA NF-IPC715 CCTV Camera Tester With 4K Support
Brand: My Store
SKU: NF-IPC715
Price: 199.99 USD
Availability: InStock

NF-IPC715 CCTV Camera Tester Product Display

NF-IPC715 CCTV Camera Tester Product Display Side

NF-IPC715 CCTV Camera Tester Back Display

NF-IPC715 CCTV Camera Tester Ports and Cords

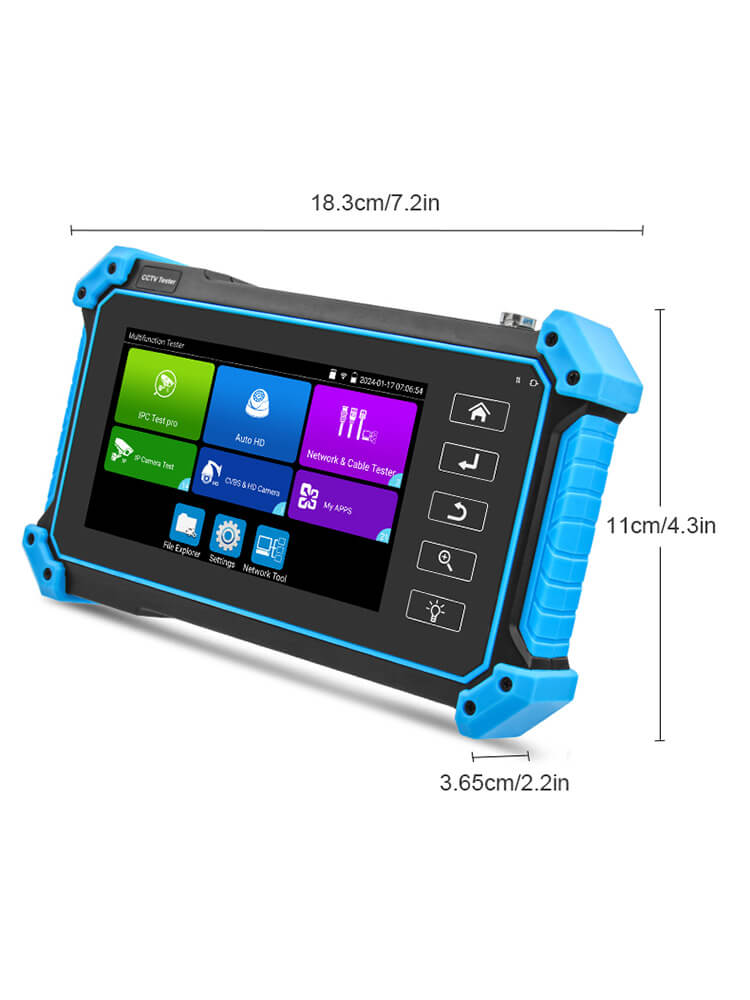

NF-IPC715 CCTV Camera Tester Product Specs

NOYAFA NF-IPC715 CCTV Camera Tester With 4K Support

Christmas Deals

$237.42 USD $199.99 USD

Shipping calculated at checkout.

Model

NF-IPC715

NF-IPC715SDI

NF-IPC715 *2

NF-IPC715SDI *2

Compare NF-IPC715 and NF-IPC715SDI

30 Day Money Back Guarantee

In Stock, Fast Free Shipping

Quantity

Buy more and save more

BUY OVER $300 USD for 10% OFF: Copy code BF300TEN
BUY OVER $600 USD for 15% OFF: Copy code BF600ELV
BUY OVER $1,000 USD for 20% OFF: Copy code BF1KTEW

Features & Benefits:

5.4-inch IPS touch screen, 1920x1080 resolution.
8MP CVI/ TVI/ AHD camera test.
H.265/H.264, 4K video display via mainstream.
VGA input supports 1920 x 1200P 60FPS.
HDMI Input supports 4K 30FPS.
DC12V 3A, 48V PoE power output.
Rapid ONVIF, Create the test report modify IP address, etc.
Auto HD, auto recognize HD coax camera type and resolution.
RJ45 TDR cable test, cable quality test.
UTP cable test detects the near-end, mid-end, and far-end fault points of the network cable crystal head.
Certification. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
100% Affordable. Manufactured in China and cheaper than competitor products with similar quality.

Model: NF-IPC715

Display Screen: 5.4 inch IPS touch screen, 1920x1080 resolution

Supported Video Modes:

CVBS:

1 channel BNC input, NTSC/PAL (Auto adapt);
PTZ control, RS485 control, Baud 600-115200bps;
compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

IP camera test: 4K/H.265/H.264

IP Discovery/ Quick ONVIF/ IPC test / RTSP play / Client APK
Rapid Video: Auto view the video, create testing report
HIKVISION: Batch activate HIKVISION cameras and modify IP address, modify password etc. Quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
DAHUA: Batch activate DAHUA cameras and modify IP address, username and password. Self-defined modify channel name.

HD Coaxial test:

8MP TVI / CVI camera: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu
8MP AHD test: 3840 x 2160P 15FPS, UTC control / call OSD menu
Auto HD app: auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu

HDMI input: 1 channel HDMI input, support 4K 30FPS. The resolutions as follow:

4K_3840 x 2160
2K_2560 x 1440P
1920×1080P / 1920×1080i
720×480P / 720×576P
1280×720
1024×768P
1280×1024P / 1280×900P
440×900P, etc

VGA input: 1 channel VGA input, support 2048 x 1152 60FPS. The resolution as follow:

2048 x 1152P/1920 x 1200P 60FPS
1920×1080P 60FPS
1792×1344P 60FPS
1680x1050P 60FPS
1600x1200P/900P 60FPS
1440x900P 60FPS
1360x768P 60FPS
1280x1024/960/800/768/720P 60FPS
1152x870P 60FPS
1024x768P 60FPS
800x600P 60FPS
600x480P 60FPS

Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back.

Power output:

12V/3A power: Output DC12V/3A power out, supply temporarily power for the camera
PoE power output: 48V PoE power output, max power 25.5W

Cable test: UTP & RJ45

Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.
Test RJ45 cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M.

Tester Play: Screen projection: Tester, mobile phone and PC display at the same time (For android version mobile phone)

Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi: Built in WIFI, speeds 150M, display wireless camera image

Audio test: 1 channel audio signal input, test whether sound normal.

Power management: Display DC 12V input & output voltage and power in real time

Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal

External power supply: DC 12V 1A

Battery: Built-in Lithium ion battery

Working time: 5 hours when charging 3-4 hours

Languages: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc

Auto off: 1-30 (mins)

Working Temperature: -10℃---+50℃

Dimension & Weight: 183mm x 110mm x 36.5mm / 0.8kg

NOYAFA NF-IPC715 CCTV Tester Manual

NOYAFA IPC715 Unboxing Video

VGA & 4K 30FPS HDMI Input

NOYAFA NF-IPC715 CCTV Tester

This CCTV tester with a 5.4-inch touch screen supports 4K camera checking for IP/CVI/TVI/AHD+Analog.

HD Coaxial 4.0 Test

View snapshot, videos, and playback of a camera on the CCTV tester through a coaxial cable. Zoom in and out as you like.

NOYAFA NF-IPC715 CCTV Tester Supported Cables

NOYAFA NF-IPC715 CCTV Tester Testing Functions

IPC Test Pro

Apart from camera testing, the product can also display you the IP address of the camera as well as the power information and upload speed.

4K HDMI Input

Connect the camera and tester with an HDMI cable. Stream the CCTV footage on the 4K 30fps screen.

NOYAFA NF-IPC715 CCTV Tester Cable Tracer

Cable Tracer & Tester

Cable tracer and tester functions are in the same interface. Easily search the signal of a UTP, BNC, or STP cable. Also, run a diagram when needed.

UTP Cable Test

Connect a cable, BNC, UTP, network, or telephoen cable, to the tester. Run a diagram and find the wire that has error.

NOYAFA NF-IPC715 CCTV Tester Power Output

Power Output Test

Insert the power cable of a PoE camera and see if the camera is running well.

App Update

Both online or local updates are available. Always keep the tester and the built-in apps up to date and sharp.

Product Details

Check up all the ports and cords on the NF-IPC715 CCTV tester. See the exact types of input and output it supports.

Compare NF-IPC715 and NF-IPC715SDI

NF-IPC715

5.4'' 1920*1152 Full viewing capacitive touch screen

AHD 8MP ✔️
CVI 8MP ✔️
TVI 8MP ✔️
EX-SDI 8MP ❌

Network Module:
Dual 1000M Port ❌
10M/100M/1000M Network Port ✔️
150M WiFi Speed ✔️
2.4G ✔️
WiFi Hot Spot ✔️
WiFi Analyzer ❌

IP Camera Test:
4K ✔️
H.265 Decode ✔️
IPC one click test ✔️
Smart IPC ✔️
32 Channel Preview ✔️
Activate Hikvision ✔️
ONVIF Testing Report ✔️
Cross-segment Testing ✔️
ONVIF Audio Test ✔️
Wide Dynamic Test ✔️
Change Channel Name ✔️
Face ID ❌

Network Testing:
Channel Monitor ✔️
Advanced Channel Monitor ❌
Network Tools ❌
PING ✔️
IP Scan ✔️
IP Conflict Test ✔️
Mac Address Scan ✔️
Band Test ✔️
Port Flash ✔️
DHCP ✔️
Router Trace ✔️
Link Detection ✔️
PPPOE ✔️
Fast IP Detection ❌
Focal Length Calculator ❌
Network Calculator ❌
Virtual IPC ✔️
Self Contract ✔️
Self Contract Audio Test ✔️
RTSP Player ✔️
Network Status ✔️

Focus Information and Lens Simulation:
Focus Inf ✔️
Video Transfer Quality Test ✔️
Picture Quality Test ✔️
Lens Simulation ✔️

Analog Camera Test:
PAL/NTSC Video Signal Test ✔️
Analog Video Test ✔️
Cloud Platform RS485 ✔️
Video Screenshot, Video Playback ✔️
Color Image Generator ❌
BNC Loop Test ❌

Network Testing:
Sequence ✔️
Wiremap ✔️
TDR Testing ✔️
Cable Quality Test ✔️
1000M Communication Quality Test ✔️

HDMI Testing:
VGA Input ✔️
HDMI Input 1080P ✔️
HDMI Input 4K30 ✔️
HDMI Output 1080P/4K30/4K60 ❌

Power Supply Testing:
PoE 48V 30W ✔️
PoE, PSE Voltage Measurement ❌
PoE, PSE Watt Measurement ❌
DC 12V 3A Output ✔️
DC 12V Input Voltage and Watt Measurement ✔️
12V Load Testing ❌
24V/2A Output ❌

USB:

USB Read ❌
USB 5V Output ❌

Audio Testing:
Audio Input, Record ✔️
Audio Output ❌

Other Functions:
Backlight ❌
Touch Screen ✔️
Micro Phone ✔️
LED Torch ✔️

Buy Now

NF-IPC715SDI

5.4'' 1920*1152 Full viewing capacitive touch screen

AHD 8MP ✔️
CVI 8MP ✔️
TVI 8MP ✔️
EX-SDI 8MP ✔️
