$236.10 USD $219.57 USD
/
Shipping calculated at checkout.
Model
Compare NF-IPC722 and NF-IPC722ATCHS
  •  30-Days Money Back Guarantee
  • In Stock, Fast Free Shipping
Buy more and save more
  • BUY OVER $300 USD for 10% OFF: Copy code BF300TEN
  • BUY OVER $600 USD for 15% OFF: Copy code BF600ELV
  • BUY OVER $1,000 USD for 20% OFF: Copy code BF1KTEW
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Maestro
  • PayPal
  • Afterpay
  • klarna
  • Apple Pay
  • Google Pay

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Features & Benefits:

  • IPC test: Check the IP address, name, protocols, PING, speed, and other information of a surveillance camera.
  • CCTV monitor: Sync captured images on the tester screen without delay. One-click to playback, record, snap, stop, and zoom in/out the frames.
  • Camera setup: Change IP address, video and image settings (brightness, contrast, resolution, frame rate, bitrate, encoder, etc), time, storage, streams, and more.
  • Universal compatibility: Supports 4K H.265 IP camera tests, 30+ ONVIF & CVBS protocols like HIKVISION, Pelco-D/P, Samsung, and Panasonic, HD camera tests like TVI, CVI, and AHD, etc.
  • Touch Screen + Buttons: Installed with a 7-in LCD touch screen, this IPC tester is like a portable tablet.
  • 3 power output: DC 5V, 12V & 24V to power on various cameras. We can plug out the cable of a camera and connect it to this tester. It will run the camera like usual.
  • Various jacks for multiple inputs: It has LAN (RJ45), CVBS (Coaxial), SDI, a red light source, fiber optic (optical power meter), PSE, RS485, and HDMI ports.
  • IP camera tester with PoE: Connect a camera to this tester via the PoE port. Run the PoE feature. You know which pair of cables is providing power and the exact voltage.
  • Cable tests: Connect the Lan cable or fiber optic cable to run a continuity test or TDR measure to see if the cable still works and its performance.
  • Model: NF-IPC722 & NF-IPC722ATCHS
  • Touch Screen: 7 inch G+ G structure capacitance screen
  • LCD Screen: 7 inch resolution 1920x1200 IPS HD full view
  • Ethernet Port: 10/100/1000M adaptive
  • WIFI: Built-in wireless WIFI, speed 150M
  • IP Camera Test: 4K H.265 IP camera test, video image real-time display without delay, support video snapshot, recording and playback
  • ONVIF: ONVIF tool, support DAHUA, HIKVISION, ACTI, SAMSUNG and other more than 30 manufacturer private protocols and customized, support camera mobile client installation
  • PTZ Control: Support Pelco-D/P, Samsung, Panasonic, etc. more than 30 protocols
  • CVBS Analog Camera Test: 1 channel CVBS analog signal input, support PAL/NTSC format adaptation
  • HD Camera Test: Support HD TVI 8MP, CVI 8MP, AHD SMP, EX-SDI 8MP (Excluded on IPC722; only available on IPC722ADCHS)
  • Video Image Zoom: Real-time enlarge moving HD video image, max enlarge 8 times
  • Cable Test: Built-in cable testing tool, check cable sequences and breakpoints, etc
  • Audio Test: One channel audio signal input for testing, can be recorded and saved
  • Optical Power Meter: Test optical fiber parameters
  • DC12V Power Output: DC12V power output, max current 3A, provide temporary power for cameras
  • DC24V Power Output: DC24V power output, max current 1A, provide temporary power for cameras
  • PoE Power Output: 48V standard PoE output, provide PoE power for cameras
  • DC5V Power Output: Provide temporary power for USB-powered cameras or emergency power for mobile phones, max current 2A
  • PSE Voltage Test: Display PoE power supply device voltage and circuit condition
  • HDMI Video Input Test: Input HD video image into instrument to test video recorder; IPC722ATCHS supports up to 4K 30FPS and IPC722 supports only HD only.
  • RS485 Serial Port tool: Can send or receive any data or hex data
  • Power Charger: DC 12V/2A
  • Battery: Built-in 7.4V polymer lithium battery, capacity 7000mAh, can work continually for 8-10 hours
  • Language: Chinese Simplified, Chinese Traditional, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese, Turkish and Italian 13 languages
  • Internal SD Storage: 8G
  • Working Temperature: -10℃ - 50℃
  • Working Humidity: 30%-90%
  • External Size: 23emx14emx4.5em
  • Weight: 0.9kg

NOYAFA NF-IPC722 & IPC722ATCHS user manual

NOYAFA

18 Years in Cable Testing and Tracing R&D and Manufacturing.

Our Story
NF-IPC722 & IPC722ATCHS

NOYAFA Fast IPC Testers

Buy one and test various security cameras of all brands with all inputs.

HD Camera Tests

AHD, TVI, CVI, and SDI cameras (8MP) are all supported. Connect them and run a quick test.

HDMI Inputs

Connect cameras via an HDMI cable for 1080P and 4K (ATCHS version only) display.

CVBS Simulation

Live stream CCTV footage without delay. Snap, record, playback, and zoom as you like.

IPC Network Tests

Connect IPC cameras via Lan cables to check the information and images of recorder. Find bugs and issues at seconds.

ONVIF Compatibility

Compatible with ONVIF standard protocols. Able to connect most cameras like HIKVISION, Samsung, Panasonic, etc.

HIKVISION Tests

Supports HIKVISION cameras for multi-line tests. One-click to batch activate multiple cameras and views.

Cable Test

When the camera itself works fine but still no images, run a cable test with NF-IPC722.

Cable Length Test

Run a TDR length test with this IPC tester to see the properties of connected LAN cables.

Network Checkup

With easy connection, one click to scan IP addresses, test network speed (PING), and find the target ports on an Ethernet Switch.

Compare NF-IPC722 and NF-IPC722ATCHS

NF-IPC722

7'' 1920*1200 Retina Touch Screen

AHD 8MP ❌
CVI 8MP ❌
TVI 8MP ❌
EX-SDI 8MP ❌

Network Module:
Dual 1000M Port ✔️
10M/100M/1000M Network Port ✔️
150M WiFi Speed ✔️
2.4G ✔️
WiFi Hot Spot ✔️
WiFi Analyzer ✔️

IP Camera Test:
4K ✔️
H.265 Decode ✔️
IPC one click test ✔️
Smart IPC ✔️
32 Channel Preview ✔️
Activate Hikvision ✔️
ONVIF Testing Report ✔️
Cross-segment Testing ✔️
ONVIF Audio Test ✔️
Wide Dynamic Test ✔️
Change Channel Name ✔️
Face ID ✔️

Network Testing:
Channel Monitor ✔️
Advanced Channel Monitor ✔️
Network Tools ✔️
PING ✔️
IP Scan ✔️
IP Conflict Test ✔️
Mac Address Scan ✔️
Band Test ✔️
Port Flash ✔️
DHCP ✔️
Router Trace ✔️
Link Detection ✔️
PPPOE ✔️
Fast IP Detection ✔️
Focal Length Calculator ✔️
Network Calculator ✔️
Virtual IPC ✔️
Self Contract ✔️
Self Contract Audio Test ✔️
RTSP Player ✔️
Network Status ✔️

Focus Information and Lens Simulation:
Focus Inf ✔️
Video Transfer Quality Test ✔️
Picture Quality Test ✔️
Lens Simulation ✔️

Analog Camera Test:
PAL/NTSC Video Signal Test ✔️
Analog Video Test ✔️
Cloud Platform RS485 ✔️
Video Screenshot, Video Playback ✔️
Color Image Generator ✔️
BNC Loop Test ✔️

Network Testing:
Sequence ✔️
Wiremap ✔️
TDR Testing ✔️
Cable Quality Test ✔️
1000M Communication Quality Test ✔️

HDMI Testing:
HDMI Input 1080P ✔️
HDMI Input 4K30 ❌
HDMI Output 1080P/4K30/4K60 ✔️

Power Supply Testing:
PoE 48V 30W ✔️
PoE, PSE Voltage Measurement ✔️
DC 12V 3A Output ✔️
DC 12V Input Voltage and Watt Measurement ✔️
12V Load Testing ✔️
24V/2A Output ✔️

USB:

USB Read ✔️
USB 5V Output ✔️

Audio Testing:
Audio Input, Record ✔️
Audio Output ✔️

Other Functions:
Backlight ✔️
Touch Screen ✔️
Micro Phone ✔️
LED Torch ✔️

NF-IPC722ATCHS

7'' 1920*1200 Retina Touch Screen

AHD 8MP ✔️
CVI 8MP ✔️
TVI 8MP ✔️
EX-SDI 8MP ✔️

Network Module:
Dual 1000M Port ✔️
10M/100M/1000M Network Port ✔️
150M WiFi Speed ✔️
2.4G ✔️
WiFi Hot Spot ✔️
WiFi Analyzer ✔️

IP Camera Test:
4K ✔️
H.265 Decode ✔️
IPC one click test ✔️
Smart IPC ✔️
32 Channel Preview ✔️
Activate Hikvision ✔️
ONVIF Testing Report ✔️
Cross-segment Testing ✔️
ONVIF Audio Test ✔️
Wide Dynamic Test ✔️
Change Channel Name ✔️
Face ID ✔️

Network Testing:
Channel Monitor ✔️
Advanced Channel Monitor ✔️
Network Tools ✔️
PING ✔️
IP Scan ✔️
IP Conflict Test ✔️
Mac Address Scan ✔️
Band Test ✔️
Port Flash ✔️
DHCP ✔️
Router Trace ✔️
Link Detection ✔️
PPPOE ✔️
Fast IP Detection ✔️
Focal Length Calculator ✔️
Network Calculator ✔️
Virtual IPC ✔️
Self Contract ✔️
Self Contract Audio Test ✔️
RTSP Player ✔️
Network Status ✔️

Focus Information and Lens Simulation:
Focus Inf ✔️
Video Transfer Quality Test ✔️
Picture Quality Test ✔️
Lens Simulation ✔️

Analog Camera Test:
PAL/NTSC Video Signal Test ✔️
Analog Video Test ✔️
Cloud Platform RS485 ✔️
Video Screenshot, Video Playback ✔️
Color Image Generator ✔️
BNC Loop Test ✔️

Network Testing:
Sequence ✔️
Wiremap ✔️
TDR Testing ✔️
Cable Quality Test ✔️
1000M Communication Quality Test ✔️

HDMI Testing:
HDMI Input 1080P ✔️
HDMI Input 4K30 ✔️
HDMI Output 1080P/4K30/4K60 ✔️

Power Supply Testing:
PoE 48V 30W ✔️
PoE, PSE Voltage Measurement ✔️
DC 12V 3A Output ✔️
DC 12V Input Voltage and Watt Measurement ✔️
12V Load Testing ✔️
24V/2A Output ✔️

USB:

USB Read ✔️
USB 5V Output ✔️

Audio Testing:
Audio Input, Record ✔️
Audio Output ✔️

Other Functions:
Backlight ✔️
Touch Screen ✔️
Micro Phone ✔️
LED Torch ✔️

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Customer

NOYAFA NF-IPC722 IPC Tester for 720P, 1080P, 4K HD Security Cameras

M
M.

The delivery was fast and the product functions as advertised

J
J.
Easy to use

The NOYAFA NF-IPC722 made a great first impression. It's professional, powerful, and easy to use, perfect for network engineers and Camera detection personnel.

You may also like

NF-716ADHS IPC Camera Tester Functions
Next: NOYAFA NF-716ADHS All-in-one IPC CCTV Camera Tester

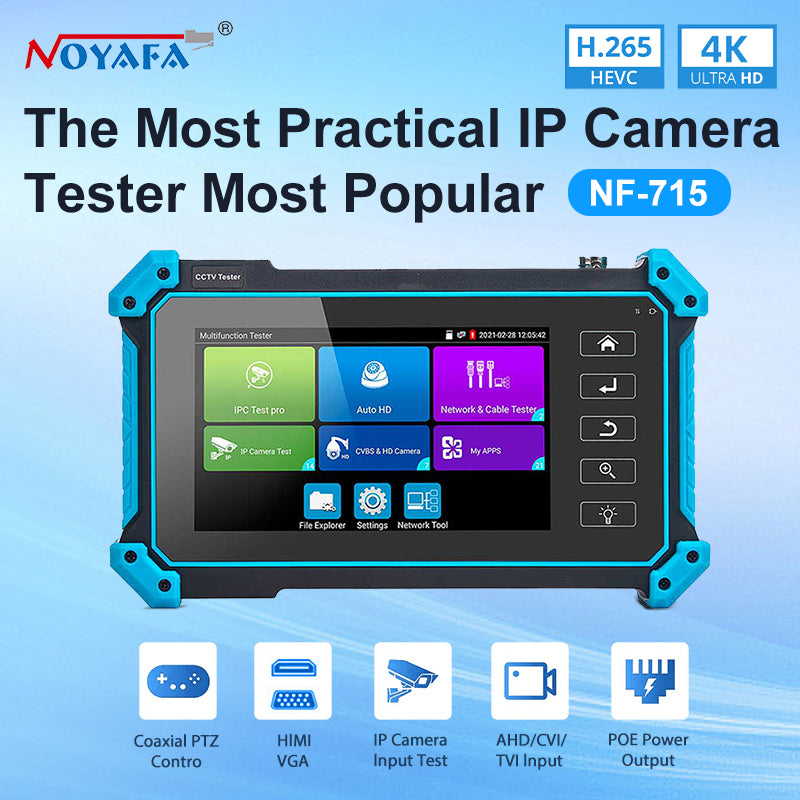

NF-IPC715 CCTV Camera Tester Product Display
