NOYAFA NF716ADHS Unboxing

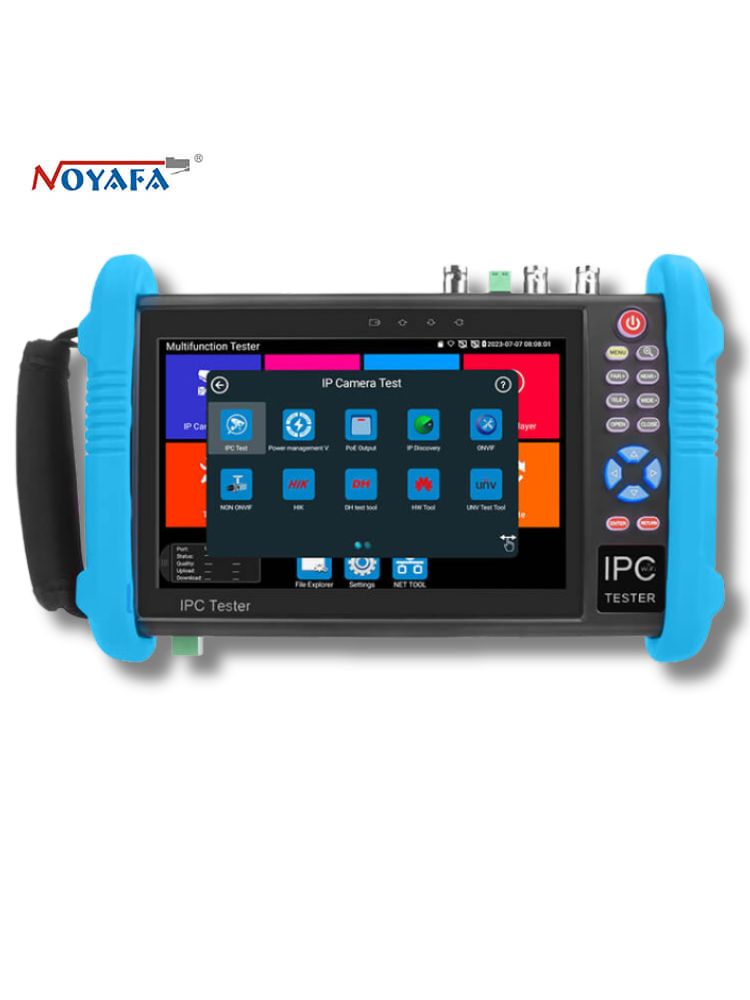

NF-716ADHS All-in-one CCTV tester
The 7 inch Retina touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other securityequipment.
Test Over Coaxial Cables
Snapshot, video record and playback, zoom, camera OSD menu control over coaxial cable.
4K HDMI Input
HDMI input & output, support 1080p, 4K
Dual Gigabit Ethernet Ports
UTP cable tester/RJ45 cable TDR test, cable quality test.
RJ45 Cable Diagram
Diagram of the cable sequence. Connection diagram. Create reports.
Compare NF-IPC716ADHS and NF-IPC716
NF-IPC716ADHS
7'' 1280*800 Full viewing capacitive touch screen
AHD 8MP ✔️
CVI 8MP ✔️
TVI 8MP ✔️
EX-SDI 8MP ✔️
Network Module:
Dual 1000M Port ✔️
10M/100M/1000M Network Port ✔️
150M WiFi Speed ✔️
2.4G ✔️
WiFi Hot Spot ✔️
WiFi Analyzer ✔️
IP Camera Test:
4K ✔️
H.265 Decode ✔️
IPC one click test ✔️
Smart IPC ✔️
32 Channel Preview ✔️
Activate Hikvision ✔️
ONVIF Testing Report ✔️
Cross-segment Testing ✔️
ONVIF Audio Test ✔️
Wide Dynamic Test ✔️
Change Channel Name ✔️
Face ID ✔️
Network Testing:
Channel Monitor ✔️
Advanced Channel Monitor ✔️
Network Tools ✔️
PING ✔️
IP Scan ✔️
IP Conflict Test ✔️
Mac Address Scan ✔️
Band Test ✔️
Port Flash ✔️
DHCP ✔️
Router Trace ✔️
Link Detection ✔️
PPPOE ✔️
Fast IP Detection ✔️
Focal Length Calculator ✔️
Network Calculator ✔️
Virtual IPC ✔️
Self Contract ✔️
Self Contract Audio Test ✔️
RTSP Player ✔️
Network Status ✔️
Focus Information and Lens Simulation:
Focus Inf ✔️
Video Transfer Quality Test ✔️
Picture Quality Test ✔️
Lens Simulation ✔️
Analog Camera Test:
PAL/NTSC Video Signal Test ✔️
Analog Video Test ✔️
Cloud Platform RS485 ✔️
Video Screenshot, Video Playback ✔️
Color Image Generator ✔️
BNC Loop Test ✔️
Network Testing:
Sequence ✔️
Wiremap ✔️
TDR Testing ✔️
Cable Quality Test ✔️
1000M Communication Quality Test ✔️
HDMI Testing:
VGA Input ❌
HDMI Input 1080P ✔️
HDMI Input 4K30 ✔️
HDMI Output 1080P ✔️
HDMI Output 4K30/4K60 ❌
Power Supply Testing:
PoE 48V 30W ✔️
PoE, PSE Voltage Measurement ✔️
DC 12V 3A Output ✔️
DC 12V Input Voltage and Watt Measurement ✔️
12V Load Testing ✔️
24V/2A Output ✔️
USB:
USB Read ✔️
USB 5V Output ✔️
Audio Testing:
Audio Input, Record ✔️
Audio Output ✔️
Other Functions:
Backlight ✔️
Micro Phone ✔️
LED Torch ✔️
NF-IPC716
7'' 1280*800 Full viewing capacitive touch screen
AHD 8MP ❌
CVI 8MP ❌
TVI 8MP ❌
EX-SDI 8MP ❌
Network Module:
Dual 1000M Port ✔️
10M/100M/1000M Network Port ✔️
150M WiFi Speed ✔️
2.4G ✔️
WiFi Hot Spot ✔️
WiFi Analyzer ✔️
IP Camera Test:
4K ✔️
H.265 Decode ✔️
IPC one click test ✔️
Smart IPC ✔️
32 Channel Preview ✔️
Activate Hikvision ✔️
ONVIF Testing Report ✔️
Cross-segment Testing ✔️
ONVIF Audio Test ✔️
Wide Dynamic Test ✔️
Change Channel Name ✔️
Face ID ✔️
Network Testing:
Channel Monitor ✔️
Advanced Channel Monitor ✔️
Network Tools ✔️
PING ✔️
IP Scan ✔️
IP Conflict Test ✔️
Mac Address Scan ✔️
Band Test ✔️
Port Flash ✔️
DHCP ✔️
Router Trace ✔️
Link Detection ✔️
PPPOE ✔️
Fast IP Detection ✔️
Focal Length Calculator ✔️
Network Calculator ✔️
Virtual IPC ✔️
Self Contract ✔️
Self Contract Audio Test ✔️
RTSP Player ✔️
Network Status ✔️
Focus Information and Lens Simulation:
Focus Inf ✔️
Video Transfer Quality Test ✔️
Picture Quality Test ✔️
Lens Simulation ✔️
Analog Camera Test:
PAL/NTSC Video Signal Test ✔️
Analog Video Test ✔️
Cloud Platform RS485 ✔️
Video Screenshot, Video Playback ✔️
Color Image Generator ✔️
BNC Loop Test ✔️
Network Testing:
Sequence ✔️
Wiremap ✔️
TDR Testing ✔️
Cable Quality Test ✔️
1000M Communication Quality Test ✔️
HDMI Testing:
VGA Input ❌
HDMI Input 1080P ❌
HDMI Input 4K30 ❌
HDMI Output 1080P ✔️
HDMI Output 4K30/4K60 ❌
Power Supply Testing:
PoE 48V 30W ✔️
PoE, PSE Voltage Measurement ✔️
DC 12V 3A Output ✔️
DC 12V Input Voltage and Watt Measurement ✔️
12V Load Testing ✔️
24V/2A Output ✔️
USB:
USB Read ✔️
USB 5V Output ✔️
Audio Testing:
Audio Input, Record ✔️
Audio Output ✔️
Other Functions:
Backlight ✔️
Micro Phone ✔️
LED Torch ✔️
