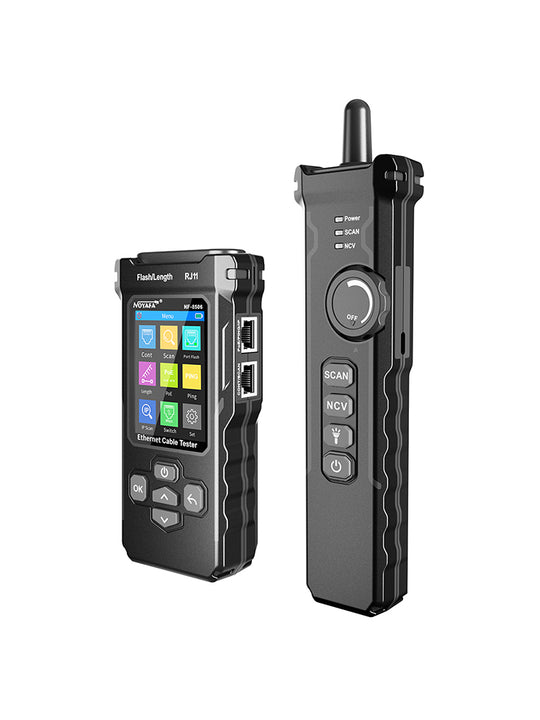

NOYAFA NF-8506
Multifunctional Cable Tester
- Continuity Test
- Cable Length
- Ping Scan
- PoE Check
- Cable Tracing
- Port Flash
- NCV
All in one compact model.
Continuity Test
Quickly test network cable status. Find out and locate the faults like short circuit, cross, or broken.

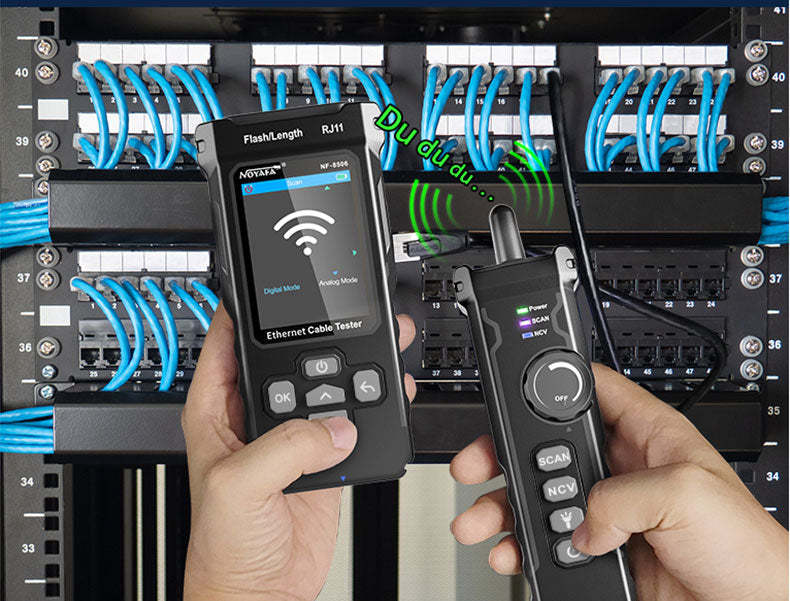

High-sensitive Dual Mode Hunting
Scan cables via both Analog and digital singal. Quickly locate the target cable in seconds.
Port Flash
Connect an end of a cable to the device and launch Port Flash function. Tell which port this cable is connected to by the flashing LED light.
Length Measurement
Insert one end of a network cable into the Flash/Length Port of the device. Press Start to measure the length of the cable.
- Range: 2.5m - 200m ( 8 - 656 feet)
PoE Test
Test the standard PoE: Mid span/End span / AT (4 Pairs)
Power Level: Power Voltage and Class
Power Supply Type: Non-standard/IEEE 802.3AF /IEEE 802.3AT/BT
Quick Network Speed Test
Ping Test
Test the network speed with NF-8506. Find out the values of Package Sent (SE), Received (RE), and Lost (LT) data.
NCV Contact
To avoid possible electrical shock, use NF-8506 Receiver's NCV function to see if the port or line has electricity or not.
Led Lighting
You can find a Led light on the Receiver. Dark environment can no longer stop you completing the task.

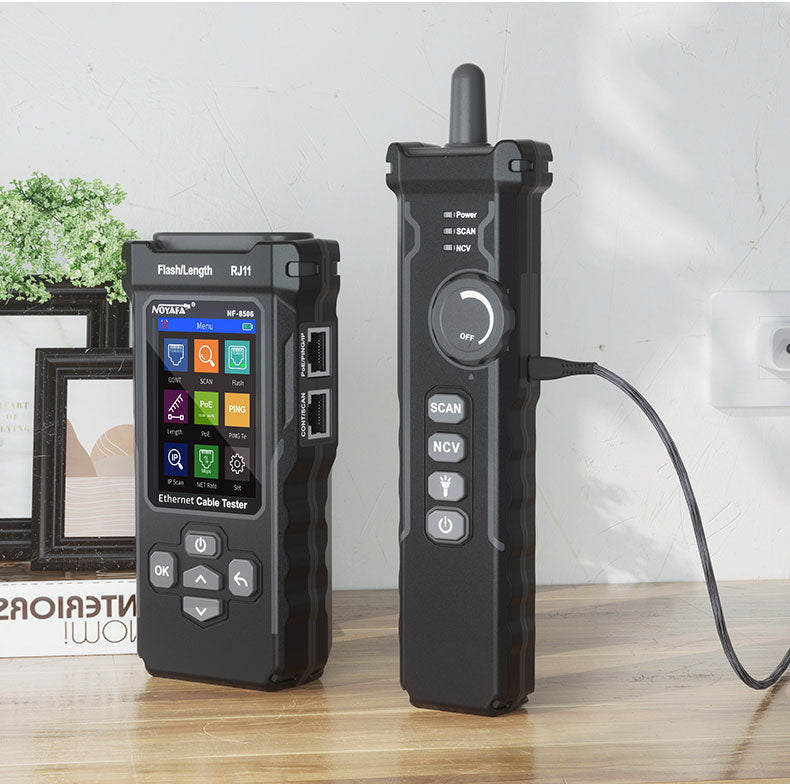

3.7V Lithium Battery
The device is installed with a 1700 mAh rechargeable lithium battery. When it drains out, take out a USB Type-C cable and make it alive soon.

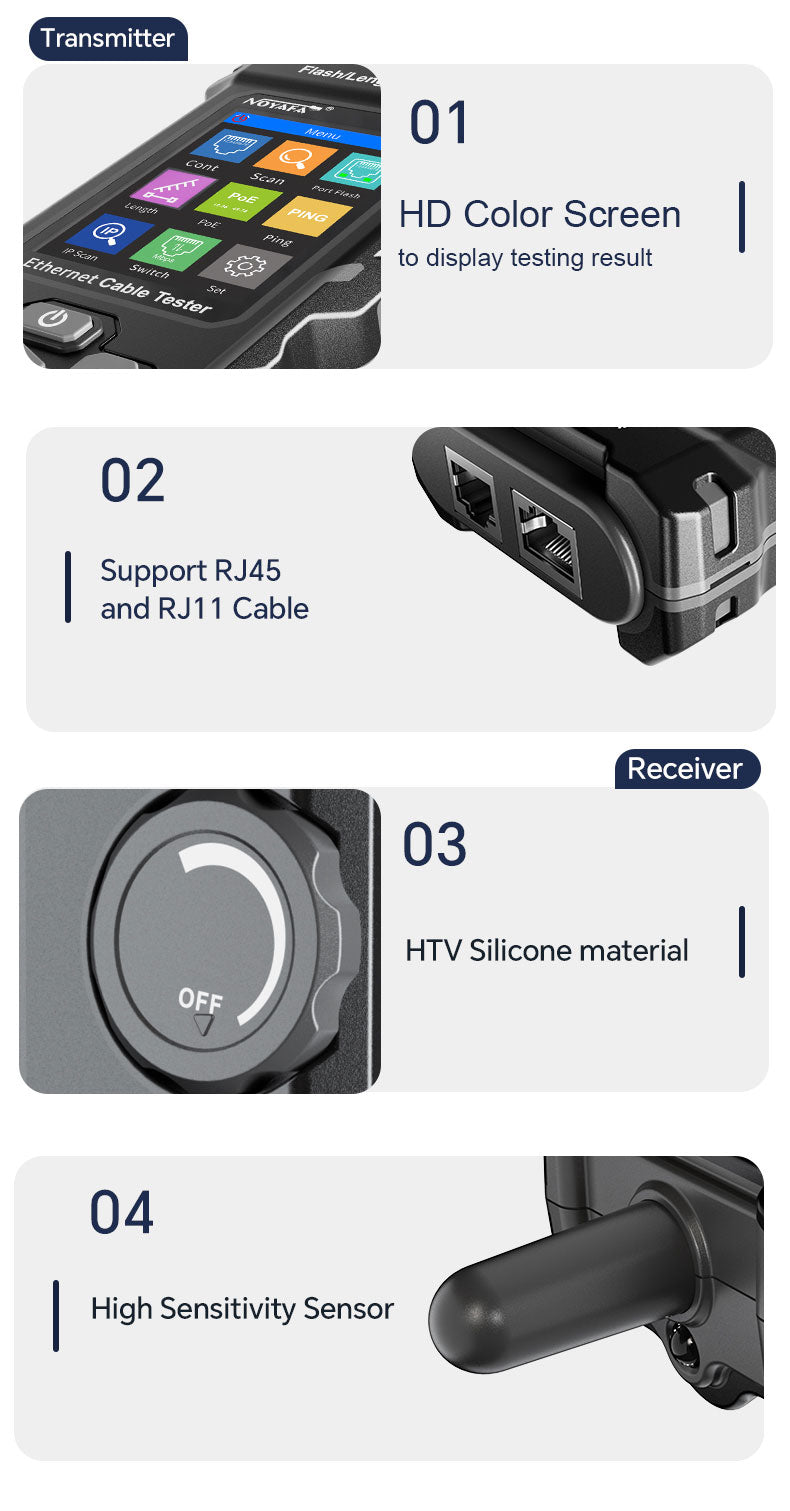

Product Details
Transmitter:
- HD Color Screen: View all testing results clearly;
- RJ11 & RJ45 ports: Support to test both network and telephone cables.
Receiver:
- HTV silicone material: Durable and compact;
- High sensitivity Sensor: Qucik and accurate testing.
