NOYAFA NF-808
Multifunction Cable Tester
Buy 1, get 9 features:
- Continuity check;
- Cable Scan and Trace;
- QC Testing;
- PoE power supply check;
- Connection testing;
- NCV;
- Headphone;
- Rechargeable battery and lower power warning;
- Led lighting.
Continuity Check
Insert a cable and press CONT on the Emitter to run a continuity check.
- When Lights 1 to 8 flash one by one, this cable functions normally.
- When any lights are off, the relative wire has a short circuit or broken circuit.
- Two lights flash alternately, there's a crossing between them.

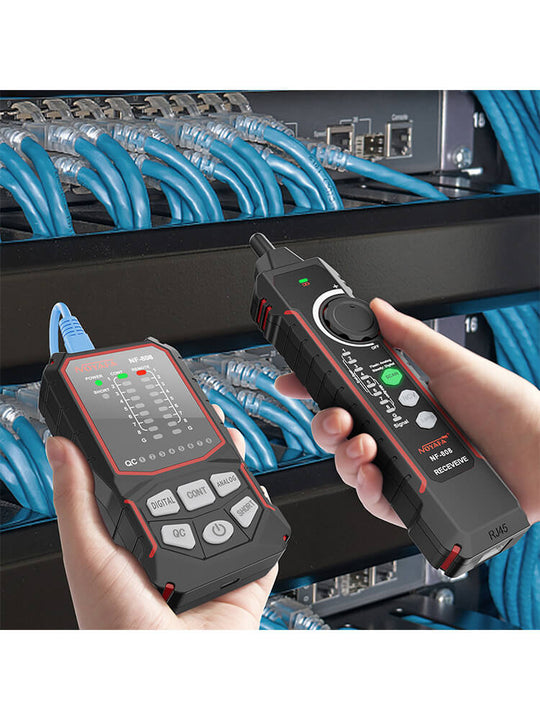

Dual Mode Line Finding
Connect one end of a network cable to the Receiver device. Press Scan and start to locate the target port or cable from a bunch of cables.
PoE Power Check
Insert an PoE cable and know how the power is carried.
- Light 1 & 2: End Span
- Light 4 & 5: Mid Span
Fast QC Test
Simply insert the target QC head of a cable. Press QC to see if there're wires falsely connected.
Connection Check
Remove the QC heads from a telephone cable. Attach the Alligator clamps to the cable. Run a quick test to see if the connection is enabled or not.
NCV
Don't need to buy an extra multimeter. Use the NF808 Receiver with NCV feature to detect sockets and wires. No danger! 100% safe.
LED Lighting
If you need to work in dark environment, it's easy to trace or test a cable. Turn on the LED light on the NF-808 Receiver. Eveything is clear.
3.7V Polymer Lithium Battery
Installed with a 1500mAh polymer lithium battery, NF-808 supports days of continuous functioning.
When the power is low, the device will alarm. Take out a Type-C cable and charge it.
