Name: NOYAFA NF-805 Tone Generator and Probe Kit for Telephone and Network Line Test
Brand: My Store
SKU: NF-805
Price: 37.99 USD
Availability: InStock

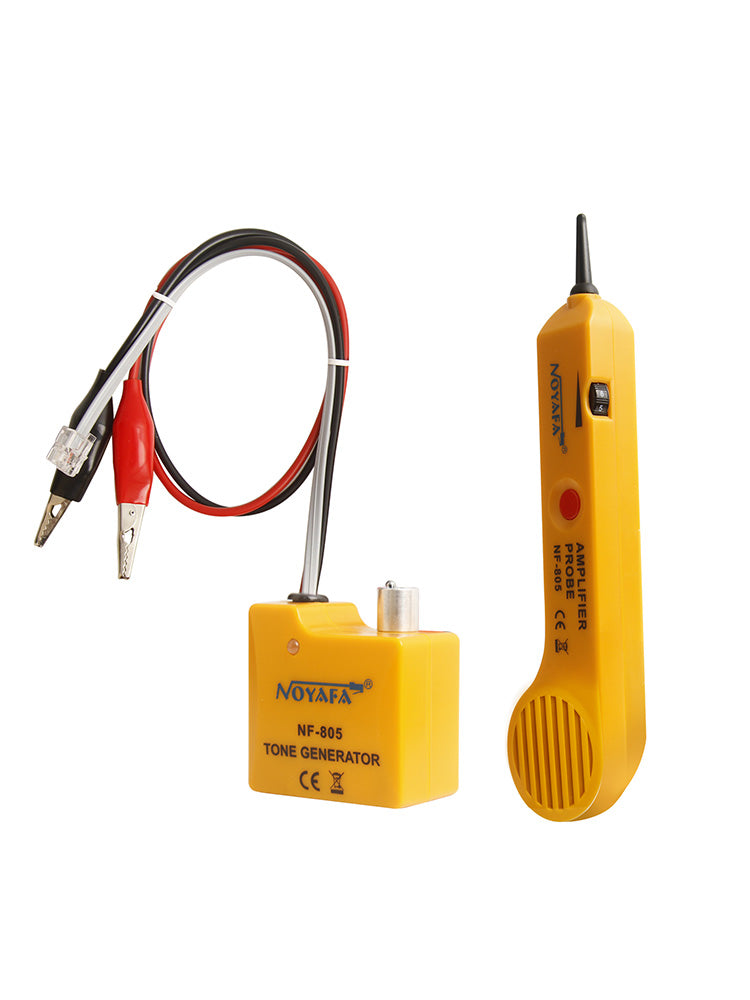

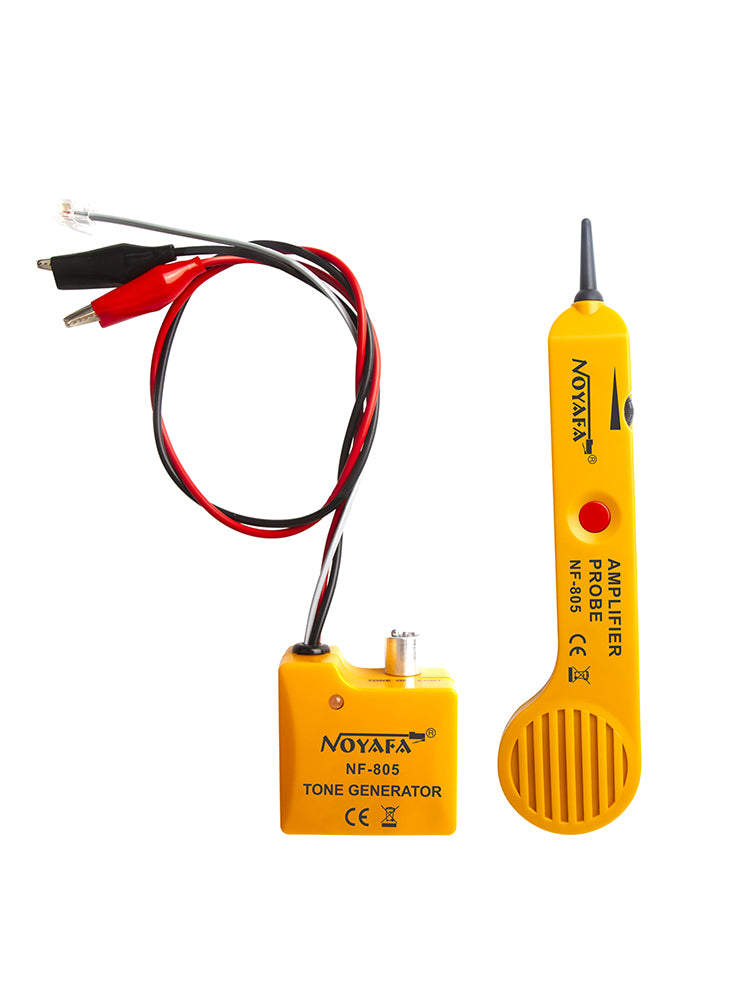

NOYAFA NF-805 Tone Generator and Probe Kit for Telephone and Network Line Test

$41.16 $37.99

Shipping calculated at checkout.

30-Days Money Back Guarantee

In Stock, Fast Free Shipping

Quantity

Features & Benefits:

Tracing and Identifying Wires: Quickly and accurately locate wires in a bundle using the Tone Generator.
Network Cable Testing: Test Cat3, telephone, coaxial, and audio/video signal cables for open and short circuits, and miswires.
Versatile Probe: Works with any existing tone generator on the market.
Continuity Testing: Choose between CONT Mode for standard testing and TONE Mode for tracing wires with a tone generator.
Telephone Line Testing: Detect the idle, ringing, and busy status of analog phone lines and perform polarity tests.
Telecom Equipment Testing: Check the live power status of telecom equipment and routers.
Compact and Portable: Pocket-sized design for easy carrying and use in tight spaces.

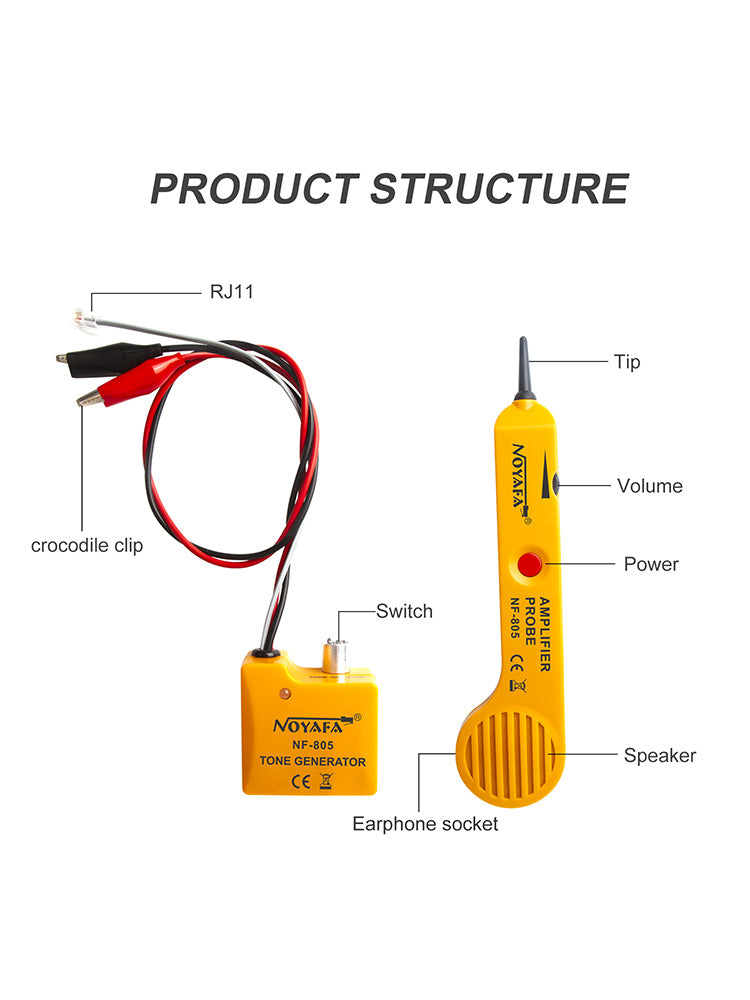

NF-805 Tone Generator

Tone frequency: 0.6~2kHz
Max. testing distance: 1.5km
Max. working current: ≤20mA
Tone mode One: Two-note tone
Connector port: RJ11 (6 pin2c), Alligator clips
Compatible cables: De-en erized AC wire, telephone/twisted pair wire, all voice and data catefory rated cable, virtually any cable or wire.
Function selection: TONE/OFF/CONT
Continuity test: 1 LED (≦10Ω)，Coaxial cable & normal solid/ stranded wire by alligator clips patch cord.
Max.signal voltage: 8Vp-p
Voltage protection: DC 48V
Low battery display: 7V (LO BAT LED)
Battery: 2 pcs

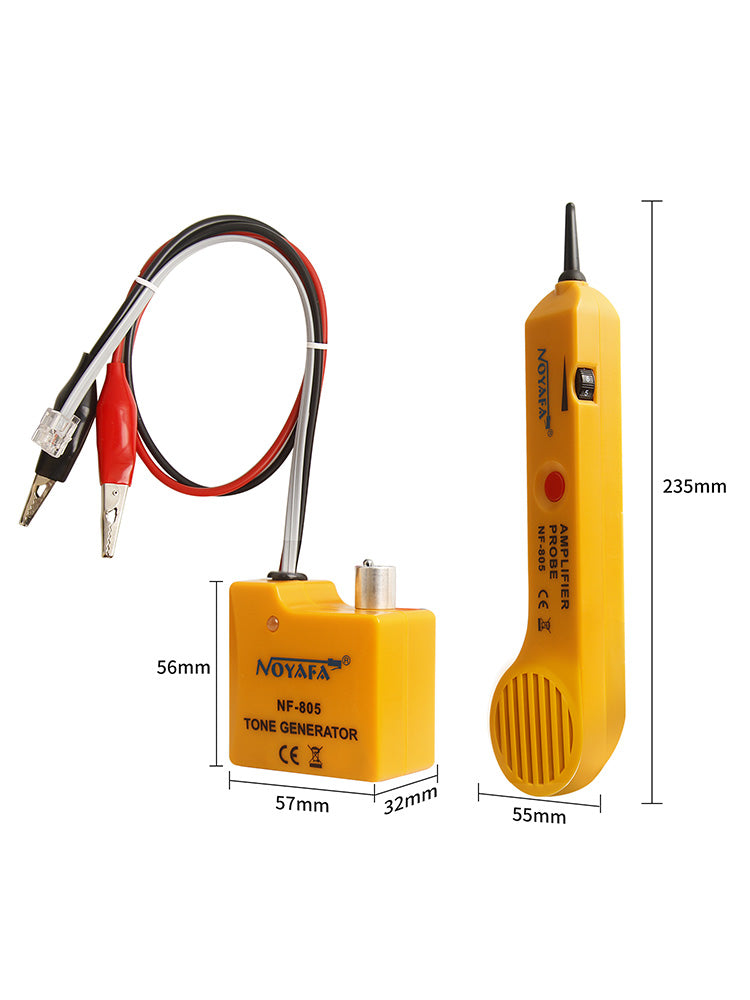

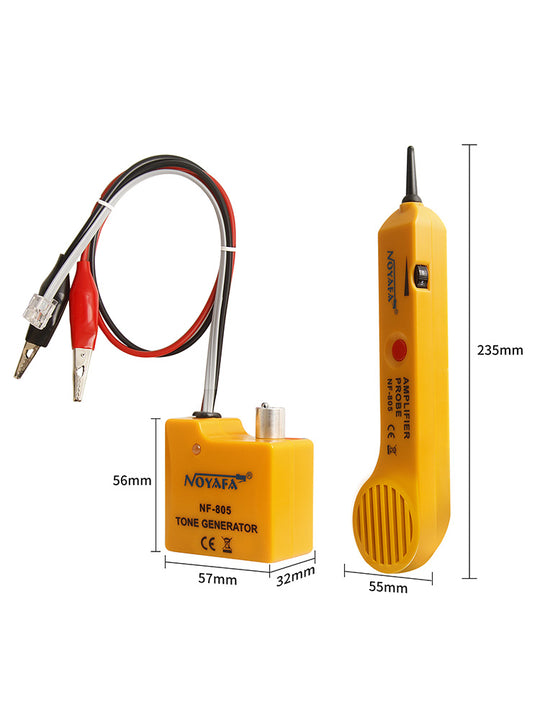

Dimension(L x W x D): 65×58×34 mm
Weight: 97 g

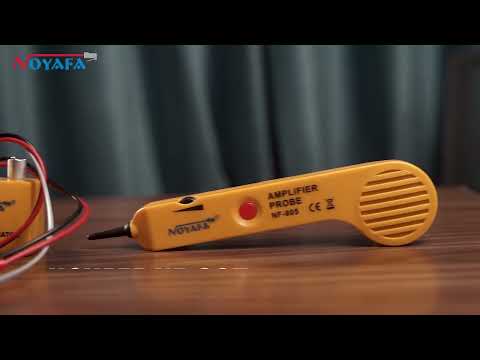

NF-805 Amplifier Probe

Frequency: 0.6~2kHz
Max. working current: ≦70mA
Start mode: Toggle switch
Function selection: 3
Position mode switch (TONE、OFF、CONT)
Earphone jack: 1
Dimension(L x W x D): 230×56×25 mm
Weight: 116g

NOYAFA NF-805 Tone Generator and Probe Kit Product Manual

NOYAFA NF-805

Cable Tester with Audio Prompt

Trace cables and locate breakpoints for telephone, network, BNC cables in one device.

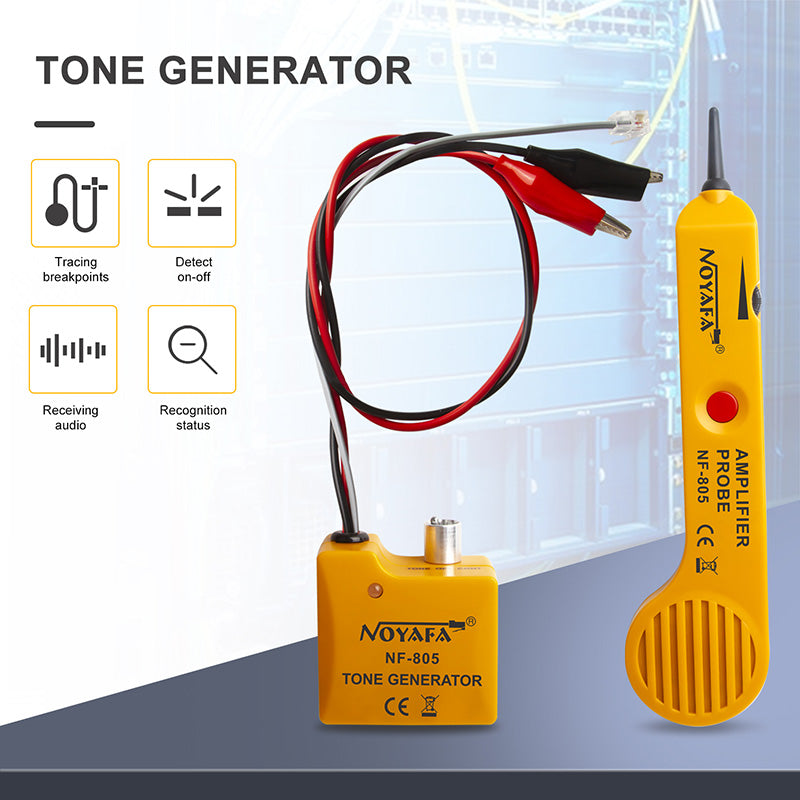

NOYAFA NF-805 Telephone Network Cable Tester Introduction

NOYAFA NF-805 Telephone Network Cable Tester Functions Present

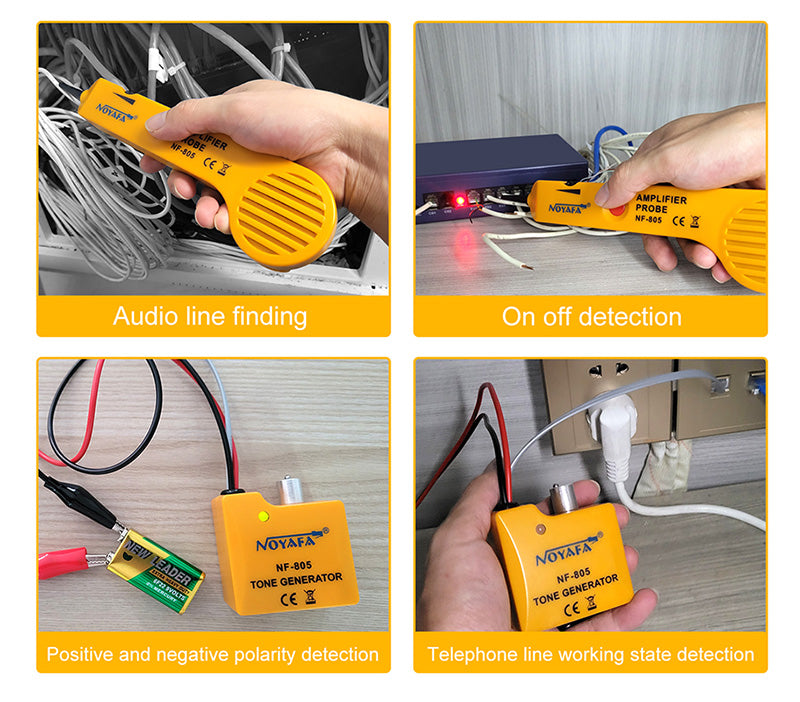

All-in-one Cable Testing and Tracing

Find target wires from messy cables.
Tap to check the continuity of telecom devices.
Check cables with 48V active DC circuit.
Plug and detect the status of cables.

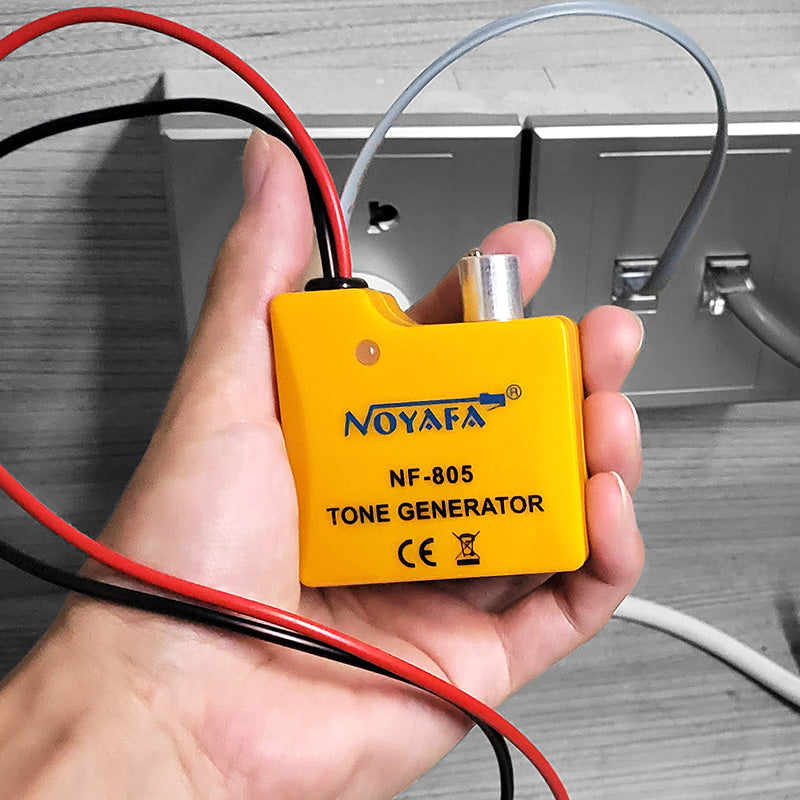

Telephone Cable Testing

Plug the telephone cable into the Tone Generator. Start to find and locate the faults in seconds.

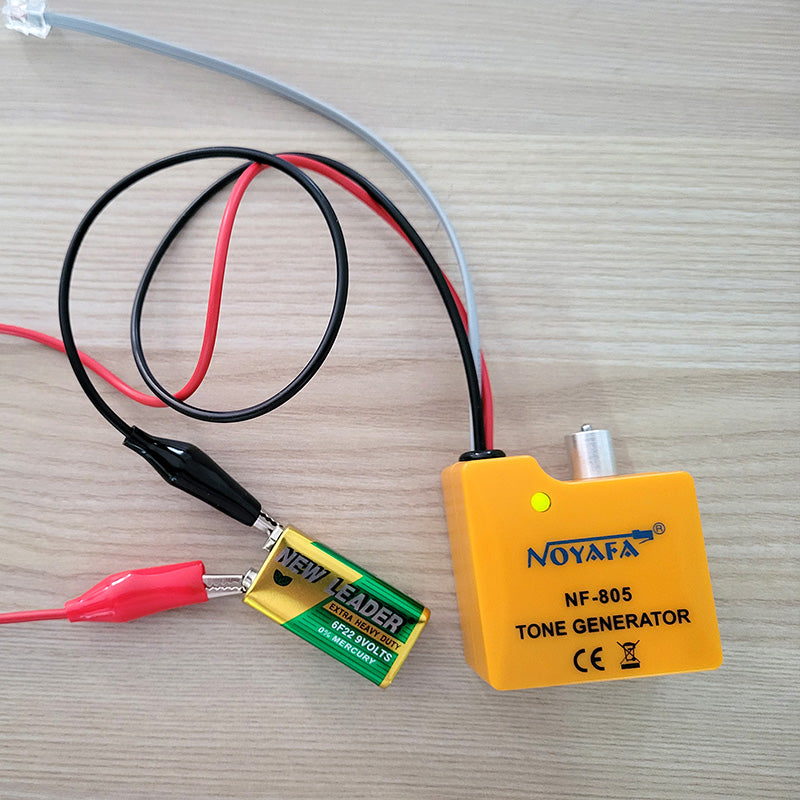

NOYAFA NF-805 Detecting Postive Negative Ends

48V Active DC Support

This audio-support cable tester can also detect and trace cables with 48V active DC circuit. You won't need to worry about damaging the product for running a test.
